Parts Catalog
Frame I
6
Parts Diagram
Parts Catalog
Steering
by
Gear box
Frame I
1
2
2
3
3
4
5
6
7
7
7
7
8
8
9
9
9
10
10
11
11
11
11
11
11
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
1
Frame
895460
Not Available
2
Bushings torque
899491
Not Available
3
Goujon
858729
$5,40 Unit Price incl. VAT
4
Insert
858704
$19,83 Unit Price incl. VAT
5
RH internal Insert
858705
Not Available
6
Insert
858706
$19,83 Unit Price incl. VAT
7
Front Insert pos. +5
858717
Not Available
8
Entretoise
858718
$3,81 Unit Price incl. VAT
9
Vis bride
AP8152410
$3,65 Unit Price incl. VAT
10
Vis bride
AP8152481
$3,36 Unit Price incl. VAT
11
Rondelle élastique courbe
AP8150292
$0,34 Unit Price incl. VAT
12
Douille de réglage
858710
$5,23 Unit Price incl. VAT
13
Insert arrière
858714
$10,17 Unit Price incl. VAT
14
Insert M10
858711
$15,24 Unit Price incl. VAT
15
Vis bride
AP8152398
$3,65 Unit Price incl. VAT
16
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
17
Rondelle
AP8152441
$3,65 Unit Price incl. VAT
18
Vis
AP8150107
$3,65 Unit Price incl. VAT
19
Rondelle
AP8152154
$0,16 Unit Price incl. VAT
20
Pivot
858712
$53,35 Unit Price incl. VAT
21
Support;
856696
$20,40 Unit Price incl. VAT
22
Insert filetée hexagonale;
AP8102902
$3,65 Unit Price incl. VAT
23
Support Conduite
858925
$0,67 Unit Price incl. VAT
24
Support
858926
$0,67 Unit Price incl. VAT
25
Conduite
858907
$4,11 Unit Price incl. VAT
26
RH Upper Air duct
858815
$4,06 Unit Price incl. VAT
27
LH Lower Air duct
858818
Not Available
28
LH Upper Air duct
858817
Not Available
29
Pin
894027
Not Available
30
Ecrou bridé
AP8150506
$3,65 Unit Price incl. VAT
31
Joint
858819
$1,62 Unit Price incl. VAT
32
Rondelle pour arbres
AP8150450
$0,25 Unit Price incl. VAT

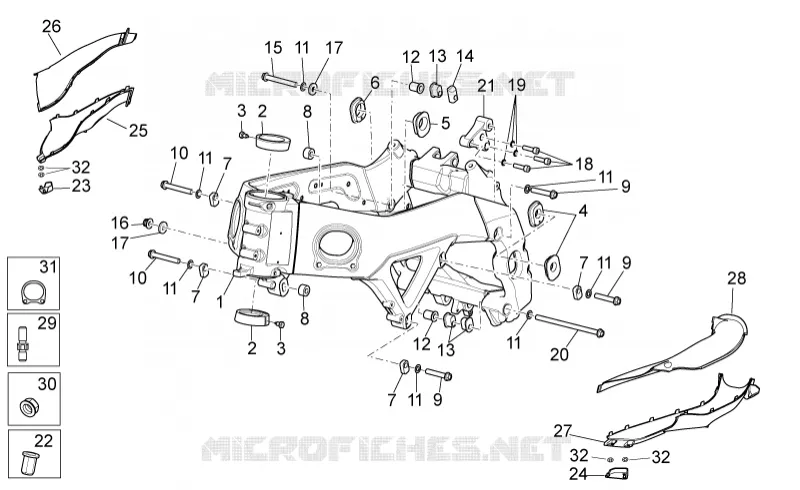

Find the detailed Frame I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
