Engine displacement
1000
2
Model
RSV4
3
Year
2012
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front body I
by
Water pump
Swing arm
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
28
29
30
30
31
32
1
Swing arm
858770
$1 227,23 Unit Price incl. VAT
2
Pivot fourche AR
858707
$174,10 Unit Price incl. VAT
3
Cage à rouleaux
AP8110078
$11,34 Unit Price incl. VAT
4
Roulement à billes
AP8110079
$15,66 Unit Price incl. VAT
5
Douille de réglage
858708
$30,21 Unit Price incl. VAT
6
Bague pivot fourche
AP8121201
$8,16 Unit Price incl. VAT
7
Galet guide-chaîne
858780
$46,81 Unit Price incl. VAT
8
Carter chaîne
858783
$3,29 Unit Price incl. VAT
9
Joint torique
AP8144048
$3,65 Unit Price incl. VAT
10
Bague d'étanchéité
AP8144006
$5,20 Unit Price incl. VAT
11
Bague seeger pour orifice
AP8121204
$3,65 Unit Price incl. VAT
12
Bague d'étanchéité
AP8144005
$8,01 Unit Price incl. VAT
13
Rondelle pour patin;
AP8234020
$2,74 Unit Price incl. VAT
14
Vis réglage t-chaîne
AP8152305
$3,65 Unit Price incl. VAT
15
Nut M8
AP8150334
Not Available
16
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
17
Ecrou autofr. bas
AP8150430
$0,16 Unit Price incl. VAT
18
Dou.int.tige fourche
858936
$9,84 Unit Price incl. VAT
19
Rondelle axe roue AR;
AP8125687
$0,42 Unit Price incl. VAT
20
Rear wheel spindle nut
648708
Not Available
21
Patin guide-chaîne g
AP8144443
$19,31 Unit Price incl. VAT
22
Patin guide-chaîne d
AP8144444
$22,29 Unit Price incl. VAT
23
Galet guide-chaîne
858781
$2,30 Unit Price incl. VAT
24
Screw w/ flange M5x12
AP8152302
Not Available
25
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
26
Entretoise interne
AP8121570
$18,12 Unit Price incl. VAT
27
Vis FHC
AP8150503
$3,65 Unit Price incl. VAT
28
Support;
AP8148824
$5,38 Unit Price incl. VAT
29
Cage à rouleaux
AP8110065
$7,02 Unit Price incl. VAT
30
Joint spi
AP8110068
$3,65 Unit Price incl. VAT
31
Vis FHC
AP8150468
$3,65 Unit Price incl. VAT
32
Decal "AGIP"
852029
Not Available

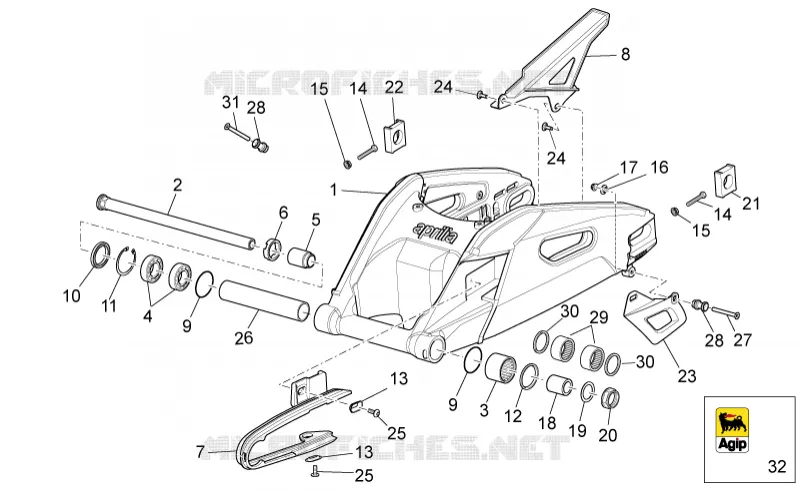

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
