Engine displacement
1000
2
Model
RSV4
3
Year
2013
4
Trim
RSV4 1000 APRC R ABS
5
Parts Catalog
Undersaddle
6
Parts Diagram
Parts Catalog
Front body III
by
ABS brake system
Undersaddle
1
2
3
3
4
4
4
4
4
5
6
6
1
Fermeture inf. porte-selle
858836
$19,83 Unit Price incl. VAT
2
Bride
893751
$1,43 Unit Price incl. VAT
2
Bride
898252
$1,48 Unit Price incl. VAT
3
VIS ex 270361
575249
$0,66 Unit Price incl. VAT
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
6
Vis bride
AP8152298
$0,21 Unit Price incl. VAT

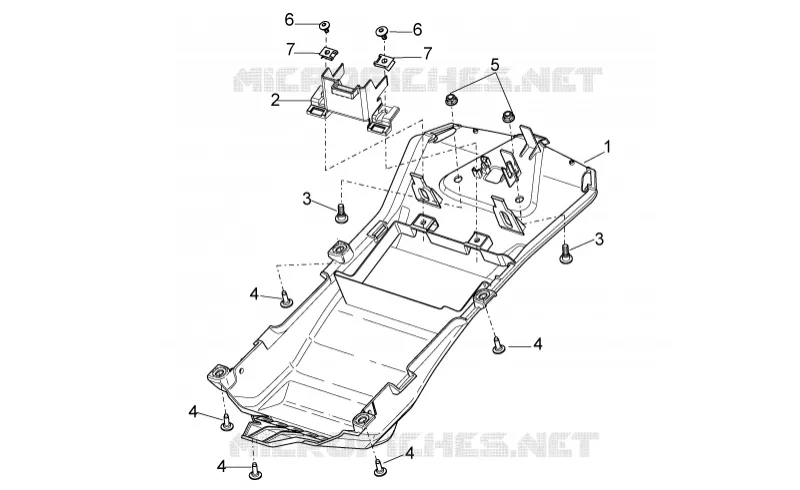

Find the detailed Undersaddle APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
