Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Cylinder - Piston
by
Front wheel
Engine
1
2
3
4
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
1
VIS
598839
$0,09 Unit Price incl. VAT
2
Entretoise
898272
$4,32 Unit Price incl. VAT
3
Levier boîte de vitesses
852480
$23,84 Unit Price incl. VAT
4
Vis
AP8224470
$0,34 Unit Price incl. VAT
5
Douille
898133
$2,20 Unit Price incl. VAT
6
Joint torique
AP8220177
$0,15 Unit Price incl. VAT
7
Sprocket cover, black
898276
Not Available
8
Entretoise
AP8120253
$3,65 Unit Price incl. VAT
9
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
10
Engine cpl.
CM2266025
Not Available
10
Engine cpl.
CM2266045
Not Available
11
Dispositif quick shift
B043834
$282,23 Unit Price incl. VAT
12
Douille
898134
$8,12 Unit Price incl. VAT
13
Vis FHC
898463
$3,70 Unit Price incl. VAT
14
Tirant
897594
$16,09 Unit Price incl. VAT
15
Lavier commande chang. vit.
897360
$143,80 Unit Price incl. VAT
16
Tige manette frein
AP8121221
$17,15 Unit Price incl. VAT
17
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
18
Ecrou autofr. bas
AP8150431
$0,34 Unit Price incl. VAT
19
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
20
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
21
Joint torique
AP8144007
$0,81 Unit Price incl. VAT
22
Lever pin
884033
$11,17 Unit Price incl. VAT
23
Bague seeger
AP8150462
$0,67 Unit Price incl. VAT
24
Minirupteur
899191
$40,90 Unit Price incl. VAT

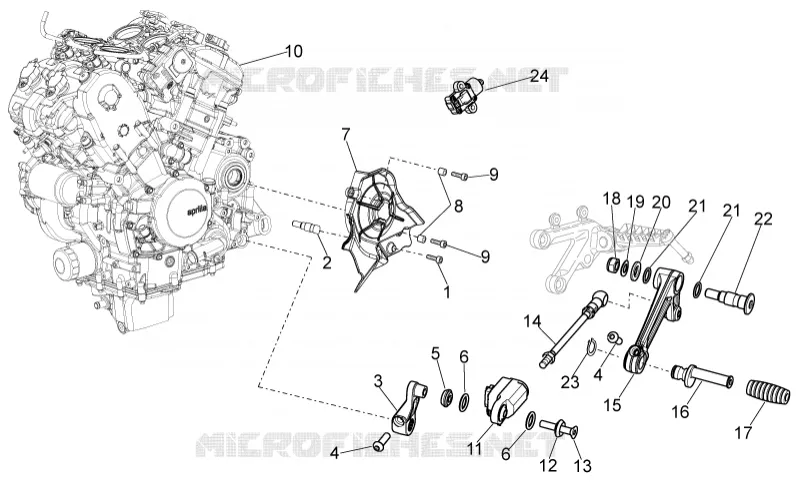

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
