1
Engine displacement
1000
2
Model
RSV4
3
Year
2013
4
Trim
RSV4 1000 APRC R ABS
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Air box
by
Exhaust pipe II
Front body II
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
13
13
14
14
15
15
16
17
18
19
20
21
21
21
21
21
21
21
21
21
22
22
23
23
24
25
26
1
Carène dte int.
858828
$3,20 Unit Price incl. VAT
2
Carène inf.g.
858829
$2,19 Unit Price incl. VAT
3
Lower RH side panel, black
85882500XN6
Not Available
3
RH lower fairing, red
858825000XRC
Not Available
4
LowerLH side panel, black
85882600XN6
$415,45 Unit Price incl. VAT
4
LH lower fairing, red
858826000XRC
Not Available
5
RH side fairing, white
89410700BM
$593,88 Unit Price incl. VAT
5
Flanc D
89410700NI
$593,88 Unit Price incl. VAT
5
RH lat.fairing
89410700XG6
Not Available
5
RH lat.fairing, red
894107000XRC
Not Available
6
LH lat.fairing, black
89736200NI
Not Available
6
LH side fairing, white
89736200BM
$593,88 Unit Price incl. VAT
6
LH lat.fairing
89736200XG6
Not Available
6
LH lat.fairing, red
897362000XRC
Not Available
7
Extracteur droit
893979
$3,44 Unit Price incl. VAT
8
Extracteur gauche
893980
$3,44 Unit Price incl. VAT
9
Rivet, femelle
AP8144616
$0,23 Unit Price incl. VAT
10
Rivet, mâle
AP8144563
$0,32 Unit Price incl. VAT
11
Clip
AP8102375
$0,69 Unit Price incl. VAT
12
Vis
896175
$1,30 Unit Price incl. VAT
13
Protection brûlure
894196
$17,77 Unit Price incl. VAT
14
Protection brûlure
894197
$18,39 Unit Price incl. VAT
15
Left-right lower fairing decal "aprilia"
B045777
$15,74 Unit Price incl. VAT
15
Décalco
895266
$6,39 Unit Price incl. VAT
15
Décalco
2H000210
$29,77 Unit Price incl. VAT
16
Bride droite
895909
$6,41 Unit Price incl. VAT
17
Bride gauche
895910
$6,41 Unit Price incl. VAT
18
Entretoise
890964
$7,82 Unit Price incl. VAT
19
Decal
B044381
$14,99 Unit Price incl. VAT
19
Décalco
B045775
$18,14 Unit Price incl. VAT
19
Décalco
2H000208
$20,41 Unit Price incl. VAT
19
Décalco
898551
$6,84 Unit Price incl. VAT
20
Decal
B044382
$14,99 Unit Price incl. VAT
20
Décalco
2H000209
$20,41 Unit Price incl. VAT
20
Décalco
898552
$6,84 Unit Price incl. VAT
20
LH fairing decal "RSV4"
B045776
$18,14 Unit Price incl. VAT
21
Anneau pare-pouss.avant
AP8120622
$3,65 Unit Price incl. VAT
22
Guide-câble sup.
AP8120428
$5,38 Unit Price incl. VAT
23
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
24
Vis
895915
$3,70 Unit Price incl. VAT
25
Décalco
2H000485
$4,82 Unit Price incl. VAT
26
Décalco
2H000486
$4,82 Unit Price incl. VAT

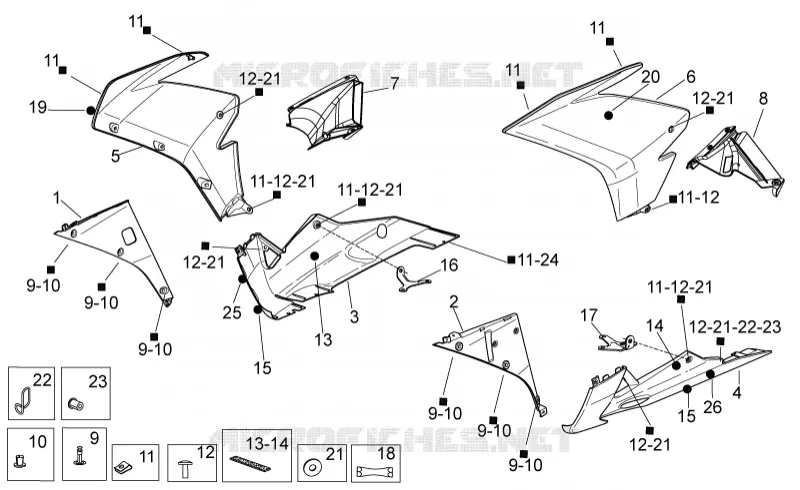

Find the detailed Front body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
