Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Frame
by
Cooling system
Front electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Détec. inclinaison
2D000037
$206,95 Unit Price incl. VAT
2
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
3
Régulateur de tension
B043488
$314,97 Unit Price incl. VAT
4
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
5
Vis
AP8152128
$0,34 Unit Price incl. VAT
6
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
7
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
8
Klaxon
890979
$26,82 Unit Price incl. VAT
9
Vis bride
AP8152285
$0,51 Unit Price incl. VAT
10
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
11
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
12
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
13
Support
890760
$0,51 Unit Price incl. VAT
14
Cablage
2D000061
$1 115,84 Unit Price incl. VAT
15
Vis
AP8152108
$0,16 Unit Price incl. VAT
16
Rondelle élastique courbe
AP8150182
$0,08 Unit Price incl. VAT
17
Ecrou carré
2B002443
$3,65 Unit Price incl. VAT
18
SUPPORT DE L'USB
2B002459
$39,20 Unit Price incl. VAT
19
PASSE CABLES
1B001591
$1,56 Unit Price incl. VAT
20
Socket USB
643277
Not Available

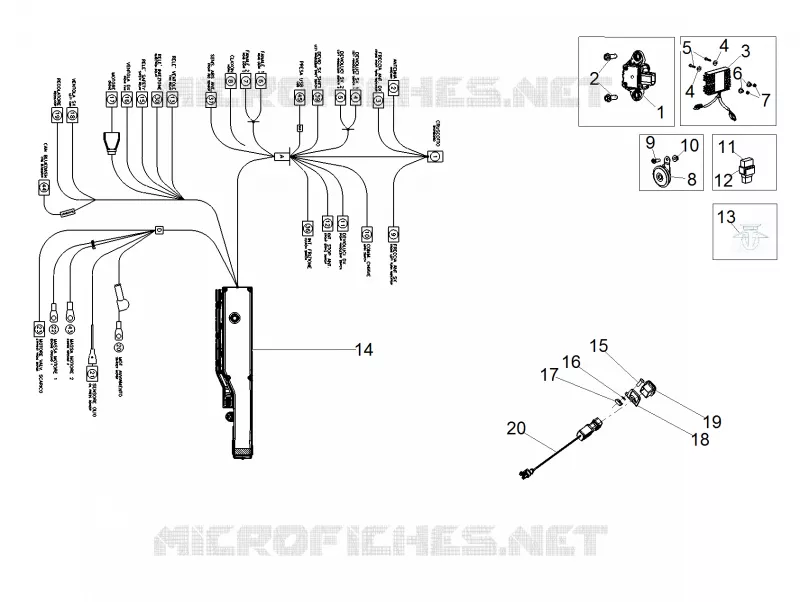

Find the detailed Front electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
