Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Front electrical system
Frame
1
2
2
3
4
5
6
7
7
7
7
8
8
9
9
9
10
10
11
11
11
11
11
11
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
35
1
Frame
895460
Not Available
2
Douille
2B001123
$102,08 Unit Price incl. VAT
3
Goujon
858729
$5,40 Unit Price incl. VAT
4
Insert
2B001451
$18,86 Unit Price incl. VAT
5
Insert
2B001453
$18,86 Unit Price incl. VAT
6
Insert
2B001452
$18,86 Unit Price incl. VAT
7
Front Insert pos. +5
858717
Not Available
8
Entretoise
858718
$3,81 Unit Price incl. VAT
9
Vis bride
AP8152410
$3,65 Unit Price incl. VAT
10
Vis bride
AP8152481
$3,36 Unit Price incl. VAT
11
Rondelle élastique courbe
AP8150292
$0,34 Unit Price incl. VAT
12
Douille de réglage
858710
$5,23 Unit Price incl. VAT
13
Insert arrière
858714
$10,17 Unit Price incl. VAT
14
Insert
2B001454
$18,12 Unit Price incl. VAT
15
Vis bride
AP8152398
$3,65 Unit Price incl. VAT
16
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
17
Rondelle
AP8152441
$3,65 Unit Price incl. VAT
18
Vis
AP8150107
$3,65 Unit Price incl. VAT
19
Rondelle
AP8152154
$0,16 Unit Price incl. VAT
20
Pivot
858712
$53,35 Unit Price incl. VAT
21
Support moteur
2B001354
$59,64 Unit Price incl. VAT
22
Insert filetée hexagonale;
AP8102902
$3,65 Unit Price incl. VAT
23
Pin
894027
Not Available
24
Ecrou bridé
AP8150506
$3,65 Unit Price incl. VAT
25
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
26
Bride
2B001525
$31,21 Unit Price incl. VAT
27
Chassis
858849
$731,72 Unit Price incl. VAT
28
Bride support feu
858903
$5,40 Unit Price incl. VAT
29
Patte
858904
$6,41 Unit Price incl. VAT
30
Rivet fileté
AP8201755
$5,73 Unit Price incl. VAT
31
Vis
AP8150469
$3,65 Unit Price incl. VAT
32
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
33
Rivet fileté+moleté
AP8102544
$5,23 Unit Price incl. VAT
34
Rivet fileté;
AP8104390
$3,38 Unit Price incl. VAT
35
Joint
AP8144707
$5,38 Unit Price incl. VAT

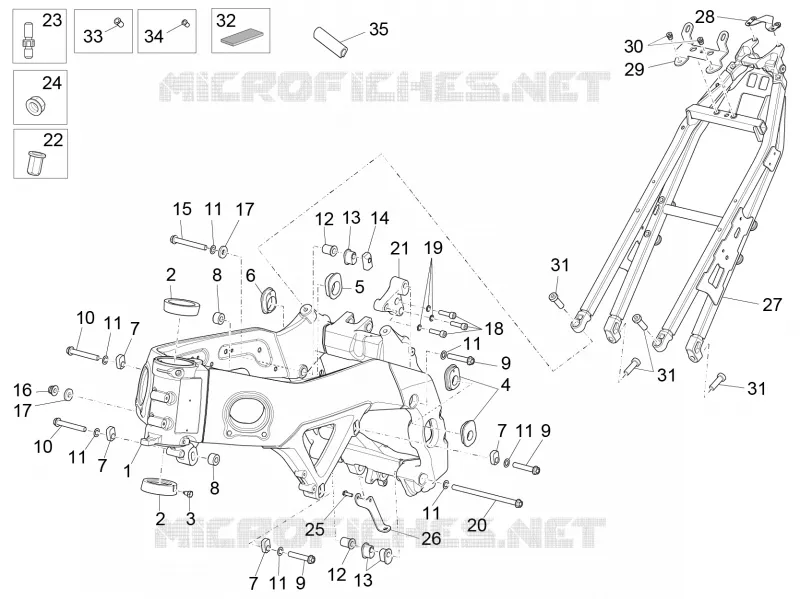

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
