1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Central electrical system
6
Parts Diagram
Parts Catalog
Clutch
by
Engine-Completing part-Lever
Central electrical system
1
2
2
3
3
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
1
Centrale electronique
CM264501
$1 123,53 Unit Price incl. VAT
2
Vis taraud 5x14
AP8150509
$0,51 Unit Price incl. VAT
3
Rondelle
AP8150382
$0,16 Unit Price incl. VAT
4
Caoutchouc
AP8220150
$1,42 Unit Price incl. VAT
5
Support centrale
858882
$2,72 Unit Price incl. VAT
6
CODEUR
B044414
$708,55 Unit Price incl. VAT
7
JOINT
854811
$0,92 Unit Price incl. VAT
8
Support commande
858883
$1,62 Unit Price incl. VAT
9
Douille
AP9100053
$1,70 Unit Price incl. VAT
10
Silentbloc
AP8144061
$4,62 Unit Price incl. VAT
11
Vis taraud 5x14
AP8150509
$0,51 Unit Price incl. VAT
12
Ecrou autofr. bas
AP8150430
$0,16 Unit Price incl. VAT
13
Entretoise
893255
$4,56 Unit Price incl. VAT
14
Centrale
890932
$67,12 Unit Price incl. VAT
15
Caoutchouc
AP8120405
$5,38 Unit Price incl. VAT
16
Cablage
2D000131
$874,54 Unit Price incl. VAT
17
SMARTPHONE INTERFACE DEVICE
2D000246
$711,90 Unit Price incl. VAT
18
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
19
Caoutchouc
AP8144065
$5,38 Unit Price incl. VAT
20
Rondelle
AP8150179
$0,08 Unit Price incl. VAT

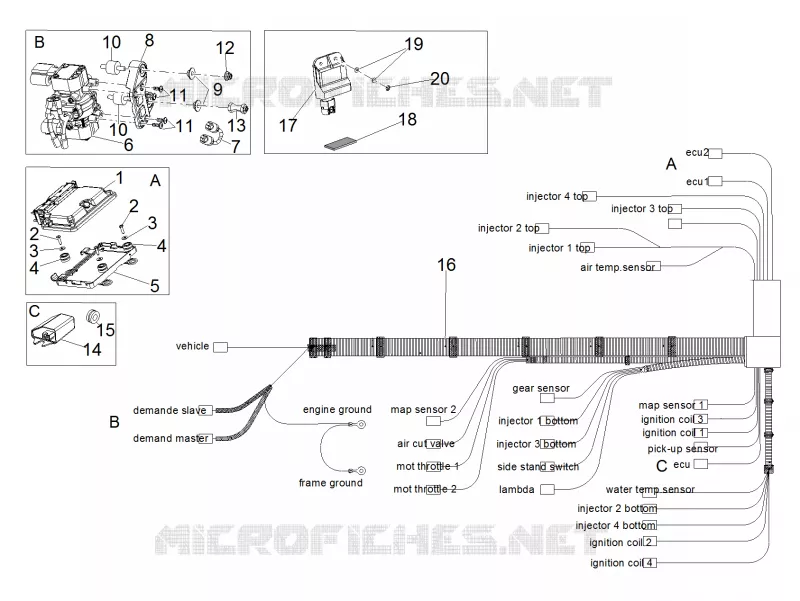

Find the detailed Central electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
