1
Engine displacement
1200
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro
5
Parts Catalog

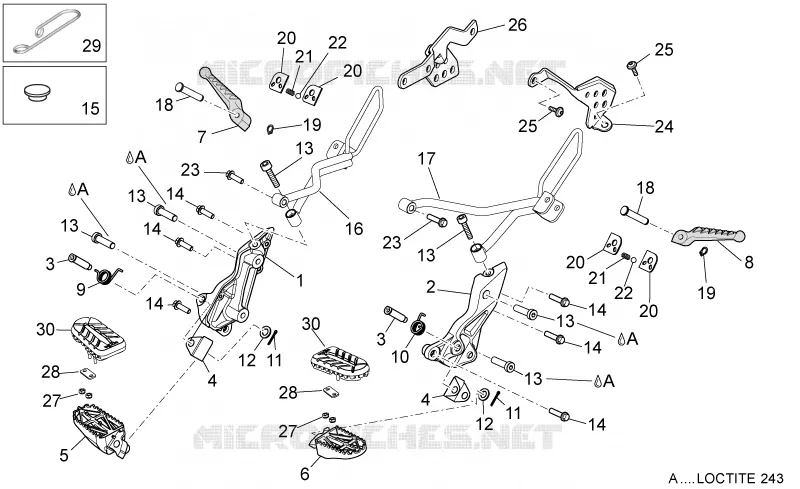

Foot rests
6
Parts Diagram
Parts Catalog
Fuel vapour recover system
by
Cooling system
Foot rests
30
30
29
28
28
27
27
26
25
25
24
23
23
22
22
21
21
20
20
20
20
19
19
18
18
17
16
15
14
14
14
14
14
14
13
13
13
13
13
13
12
11
12
11
10
8
9
7
5
6
4
3
4
3
2
1
1
RH foot rest support
856779
$95,21 Unit Price incl. VAT
1
RH foot rest support
B046059
Not Available
2
LH footrest support
856780
$96,98 Unit Price incl. VAT
2
LH footrest support
B046060
Not Available
3
Pin
AP9100197
$4,36 Unit Price incl. VAT
4
Footrest plate
859921
$1,06 Unit Price incl. VAT
5
RH footrest
896664
$38,22 Unit Price incl. VAT
6
LH footrest
896665
$38,22 Unit Price incl. VAT
7
Rear footrest, RH
AP8146405
Not Available
8
Rear footrest, LH
AP8146406
Not Available
9
Spring RH
AP9100196
$5,38 Unit Price incl. VAT
10
Spring LH
AP9100195
$5,38 Unit Price incl. VAT
11
Split pin *
AP8201431
$5,38 Unit Price incl. VAT
12
Washer 10,5X18X2*
AP8152176
$3,65 Unit Price incl. VAT
13
Hex socket screw M8x35
AP8150236
$0,55 Unit Price incl. VAT
14
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
15
Cover
AP8102600
$0,16 Unit Price incl. VAT
16
RH footrest support
896936
$64,35 Unit Price incl. VAT
17
LH footrest support
896940
$64,35 Unit Price incl. VAT
18
Footrest pin
CM228401
$5,20 Unit Price incl. VAT
19
Stop ring
AP8120573
$3,65 Unit Price incl. VAT
20
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
21
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
22
Ball D6,35
AP8101861
$0,10 Unit Price incl. VAT
23
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
24
LH protection
860987
$18,99 Unit Price incl. VAT
25
Hex socket screw M8x12
AP8152055
$3,65 Unit Price incl. VAT
26
RH protection
890164
$16,14 Unit Price incl. VAT
27
Low self-locking nut
AP8150451
$0,17 Unit Price incl. VAT
28
Footrest plate
890243
$3,03 Unit Price incl. VAT
29
Fairlead
899075
$2,35 Unit Price incl. VAT
30
Footrest rubber
898639
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
