1
Engine displacement
1200
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro
5
Parts Catalog

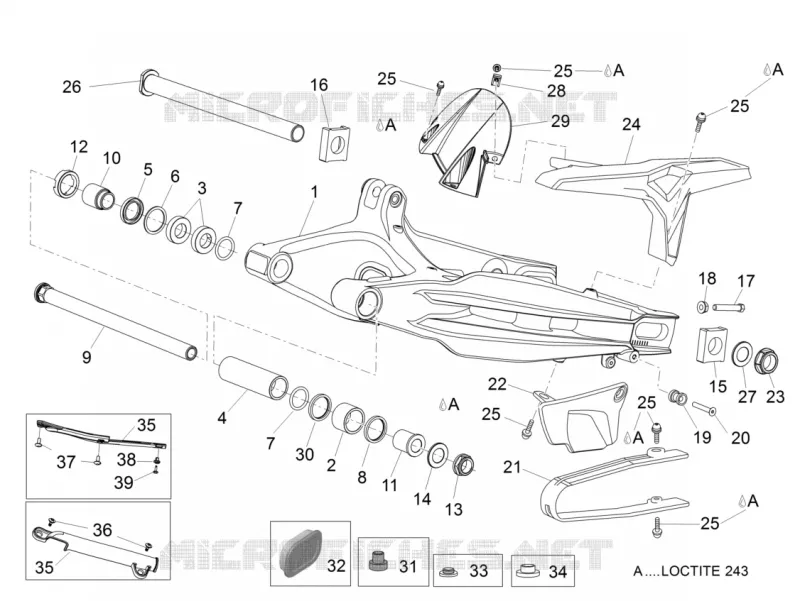

Swing arm
6
Parts Diagram
Parts Catalog
Rear wheel
by
Front cylinder timing system
Swing arm
39
38
37
36
35
35
34
33
32
31
30
29
28
27
26
25
25
25
25
25
25
24
23
22
21
20
19
18
17
16
15
13
14
12
10
11
9
7
8
6
7
4
5
3
2
1
1
Swingarm
85623200XES
Not Available
2
Roller cage
AP8110078
$11,34 Unit Price incl. VAT
3
Ball bearing 61904-2RS1
890002
$23,76 Unit Price incl. VAT
4
Internal spacer
AP8121570
$18,12 Unit Price incl. VAT
5
Gasket ring
AP8144006
$5,20 Unit Price incl. VAT
6
Inside circlip d37
AP8121204
$3,65 Unit Price incl. VAT
7
O-ring 134
AP8144048
$3,65 Unit Price incl. VAT
8
Gasket ring
AP8144005
$8,01 Unit Price incl. VAT
9
Rear swing arm pin
AP8146520
$142,01 Unit Price incl. VAT
10
Adjustment bush
AP8121200
$10,95 Unit Price incl. VAT
11
Rear int.sw.arm piv.bush
AP8121203
$10,95 Unit Price incl. VAT
12
Swing arm ring nut
AP8121201
$8,16 Unit Price incl. VAT
13
Rear wheel spindle nut
AP8125763
$8,12 Unit Price incl. VAT
14
Wheel pin washer
AP8125687
$0,42 Unit Price incl. VAT
15
LH chain guide plate
AP8144443
$19,31 Unit Price incl. VAT
16
RH chain guide plate
AP8144444
$22,29 Unit Price incl. VAT
17
Chain tens.adjuster screw
AP8152305
$3,65 Unit Price incl. VAT
18
Nut M8
AP8150334
Not Available
19
Rear stand bush
AP8121890
$3,65 Unit Price incl. VAT
20
screw
255638
$0,15 Unit Price incl. VAT
21
Chain guide plate
AP8144168
$35,51 Unit Price incl. VAT
22
Chain guide plate
859929
$5,44 Unit Price incl. VAT
23
Wheel spindle nut M25x1,5
AP8152324
$7,30 Unit Price incl. VAT
24
Chain guard
856787
$14,23 Unit Price incl. VAT
25
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
26
Rear wheel spindle
AP8125831
Not Available
27
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
28
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
29
Rear mudguard
859764
$10,61 Unit Price incl. VAT
30
Gasket ring
890126
$1,68 Unit Price incl. VAT
31
Rubber spacer
AP8144158
$2,18 Unit Price incl. VAT
32
Cover
860898
$8,26 Unit Price incl. VAT
33
Cover
860899
$3,78 Unit Price incl. VAT
34
Cover
860900
$4,89 Unit Price incl. VAT
35
Brake hose protection
B045805
Not Available
35
Brake hose protection
895349
Not Available
36
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
37
screw
893132
$1,18 Unit Price incl. VAT
38
Plastic rivet, black
AP8202058
$3,65 Unit Price incl. VAT
39
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
