1
Engine displacement
1200
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro
5
Parts Catalog

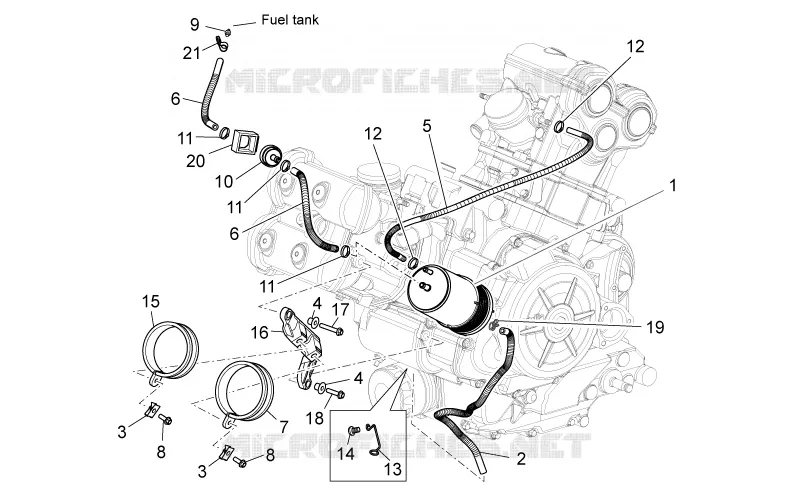

Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Front body - Front mudguard
by
Foot rests
Fuel vapour recover system
21
20
19
18
17
16
15
13
14
12
11
12
11
10
11
9
8
8
7
6
6
5
4
4
3
3
2
1
1
Carbon filter
AP8102678
$83,70 Unit Price incl. VAT
2
Fuel pipe 8x13
AP8120905
Not Available
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
T bush
AP8221023
$0,93 Unit Price incl. VAT
5
pipe SAE 30 d.11,11x4,8
856062
$19,10 Unit Price incl. VAT
6
pipe SAE 30 d.12,7x6,35
856063
$41,29 Unit Price incl. VAT
7
Hose clamp d.80,5
AP8102719
$26,74 Unit Price incl. VAT
8
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
9
Joint
AP8144276
$4,32 Unit Price incl. VAT
10
Valve
860138
$15,58 Unit Price incl. VAT
11
White hose clip d.13x6
AP8102764
$1,86 Unit Price incl. VAT
12
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
13
Plug hook
AP8102815
$5,38 Unit Price incl. VAT
14
Hex socket screw M8x12
AP8152055
$3,65 Unit Price incl. VAT
15
Hose clamp d.76
AP8102688
$31,97 Unit Price incl. VAT
16
Canister support USA
898247
$33,77 Unit Price incl. VAT
17
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
18
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
19
Hose clamp
AP8102520
$0,26 Unit Price incl. VAT
20
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
21
Black hose D12*
AP8102151
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
