Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Duct
Rear electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
BATTERIE 12V 10 Ah-YT12A-BS YUASA
639792
$266,51 Unit Price incl. VAT
2
Relay battery wiring
B044640
Not Available
3
Capuchon
895701
$9,97 Unit Price incl. VAT
4
Cable batterie
2D000158
$66,10 Unit Price incl. VAT
5
Fusible
CM225730
$0,51 Unit Price incl. VAT
6
Relais
582690
$27,87 Unit Price incl. VAT
7
Relais starter
895481
$9,69 Unit Price incl. VAT
8
Caoutchouc
896715
$1,26 Unit Price incl. VAT
9
Fusible
CM225605
$9,00 Unit Price incl. VAT
10
Fusible
CM225607
$2,60 Unit Price incl. VAT
11
Fusible
CM225615
$5,62 Unit Price incl. VAT
12
Caoutchouc
858212
$3,49 Unit Price incl. VAT
13
Cablage
2D000061
$1 115,84 Unit Price incl. VAT
14
Collier él.
860744
$3,38 Unit Price incl. VAT
15
Collier, noir
AP8120416
$5,38 Unit Price incl. VAT
16
FASCETTA IN NYLON NERA
AP8102386
$0,07 Unit Price incl. VAT
17
Collier
AP8120657
$0,34 Unit Price incl. VAT
18
FUSIBLE
CM225715
$7,23 Unit Price incl. VAT
19
Cablage
2D000010
$64,55 Unit Price incl. VAT

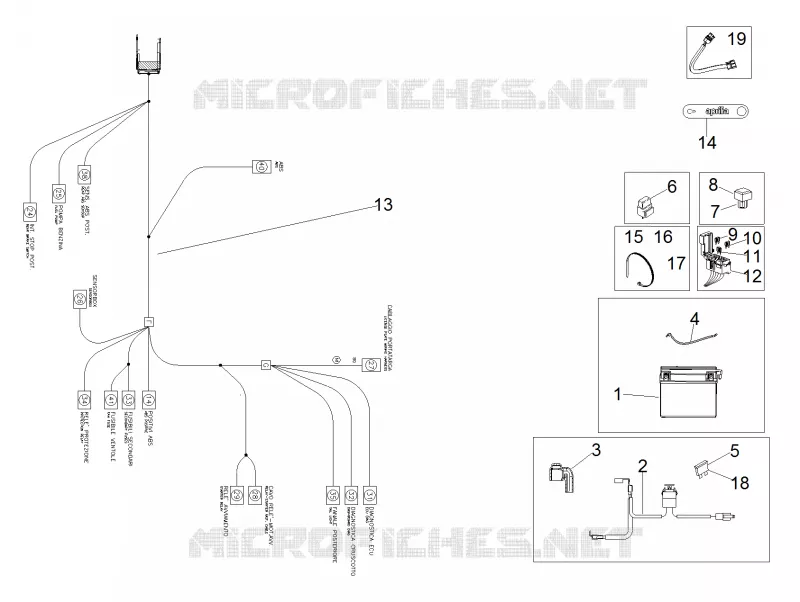

Find the detailed Rear electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
