1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Swing arm
by
Oil radiator
Air box
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
1
Filter housing base
2B001216
Not Available
2
COUVERCLE FILTRE AIR
2B001220
$62,26 Unit Price incl. VAT
3
Convoyeur air
2B001218
$13,53 Unit Price incl. VAT
4
JOINT FILTRE AIR
2B001217
$18,14 Unit Price incl. VAT
5
Air filter
2B001072
Not Available
6
Manchon
2B001413
$15,22 Unit Price incl. VAT
7
Manchon
2B001412
$15,22 Unit Price incl. VAT
8
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
9
Injector kit complete
2A000275
Not Available
10
Tuyau essence
858807
$47,05 Unit Price incl. VAT
11
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
12
Patte
2B001481
$15,98 Unit Price incl. VAT
13
Tuyau
858808
$52,52 Unit Price incl. VAT
14
COLLIER
CM002912
$0,15 Unit Price incl. VAT
15
Collier serr. Tube
CM001927
$3,38 Unit Price incl. VAT
16
Couvercle
2B001219
$6,60 Unit Price incl. VAT
17
Détec.temper.air
GU30729330
$34,55 Unit Price incl. VAT
18
Joint
GU30027931
$5,38 Unit Price incl. VAT
19
Vis taraud pour plast. Inox
AP8150421
$3,70 Unit Price incl. VAT
20
Caoutchouc
893752
$1,55 Unit Price incl. VAT
21
SYSTÈME TROMPETTES MOBILES
2B001480
$1 839,14 Unit Price incl. VAT
22
Vis
893132
$1,18 Unit Price incl. VAT
23
TROMPETTES BAS
2B001507
$31,21 Unit Price incl. VAT
24
Support
893915
$21,23 Unit Price incl. VAT
25
Joint torique
893240
$4,89 Unit Price incl. VAT

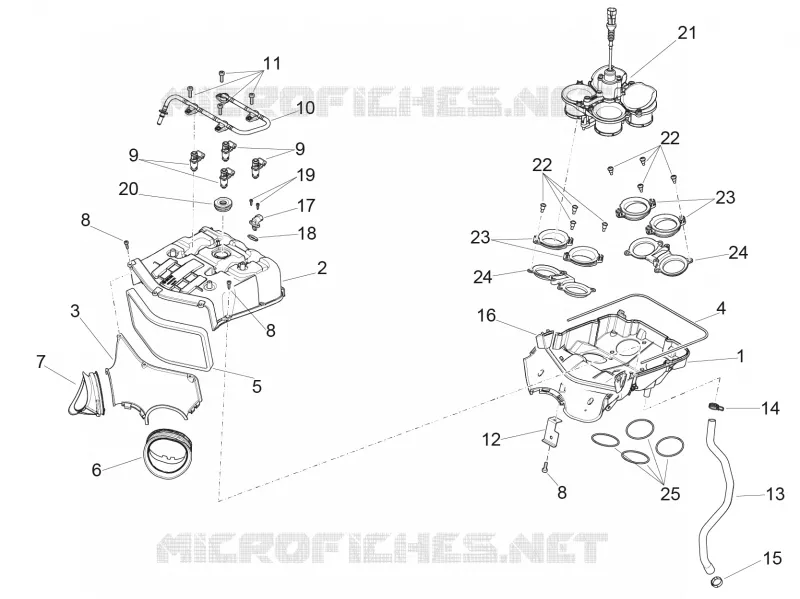

Find the detailed Air box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
