Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Rear mudguard
by
Tank cover
Cooling system
1
2
3
4
4
4
4
5
6
6
6
6
7
8
9
10
11
12
13
14
14
14
15
16
16
17
18
19
20
20
21
21
21
22
22
22
23
23
24
24
24
25
26
26
27
27
27
27
28
29
30
31
32
33
34
34
35
36
37
38
38
39
1
Water cooler
B045753
Not Available
2
Fan, cpl.
622055
Not Available
3
Support radiateur
897775
$6,64 Unit Price incl. VAT
4
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
5
Gr. bouchon cpl.
893954
$33,25 Unit Price incl. VAT
6
COLLIER SERR. TUBE
CM269609
$5,20 Unit Price incl. VAT
7
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
8
Tuyau radiateur
2B002204
$42,72 Unit Price incl. VAT
9
Collier
AP8101595
$0,32 Unit Price incl. VAT
10
Groupe thermostat
856279
$112,07 Unit Price incl. VAT
11
Manchon
2B002207
$20,60 Unit Price incl. VAT
12
Tuy.thermos.-pompe
AP8144033
$49,51 Unit Price incl. VAT
13
Collier
AP8102378
$0,21 Unit Price incl. VAT
14
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
15
Tuyau radiateur
858488
$34,44 Unit Price incl. VAT
16
Collier
CM269603
$3,65 Unit Price incl. VAT
17
Tuy.thermostat-mot.
2B002208
$56,87 Unit Price incl. VAT
18
Vis bride
AP8152272
$0,08 Unit Price incl. VAT
19
Collier
893224
$1,92 Unit Price incl. VAT
20
Vis FHC
893514
$1,59 Unit Price incl. VAT
21
Rondelle
893823
$3,70 Unit Price incl. VAT
22
Entretoise
893513
$0,53 Unit Price incl. VAT
23
Rondelle
AP8150011
$0,25 Unit Price incl. VAT
24
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
25
Temperature gauge
640485
Not Available
26
Tuyau moteur-collec.
2B002203
$45,50 Unit Price incl. VAT
27
Collier
CM269606
$3,65 Unit Price incl. VAT
28
Collecteur
856543
$35,21 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Expansion tank plug
AP8104836
Not Available
31
Vase d'expansion
858908
$82,35 Unit Price incl. VAT
32
"Douille en ""T"" *"
AP8221145
$3,65 Unit Price incl. VAT
33
Rondelle
AP8150015
$0,16 Unit Price incl. VAT
34
"Douille en ""T"""
AP8121728
$6,08 Unit Price incl. VAT
35
Douille;
AP8121991
$5,20 Unit Price incl. VAT
36
Guide-câble
AP8221150
$3,65 Unit Price incl. VAT
37
Douille filetée
895450
$1,49 Unit Price incl. VAT
38
Manchon
AP8144720
$6,30 Unit Price incl. VAT
39
Anneau d'arrêt rad.
AP8120573
$3,65 Unit Price incl. VAT

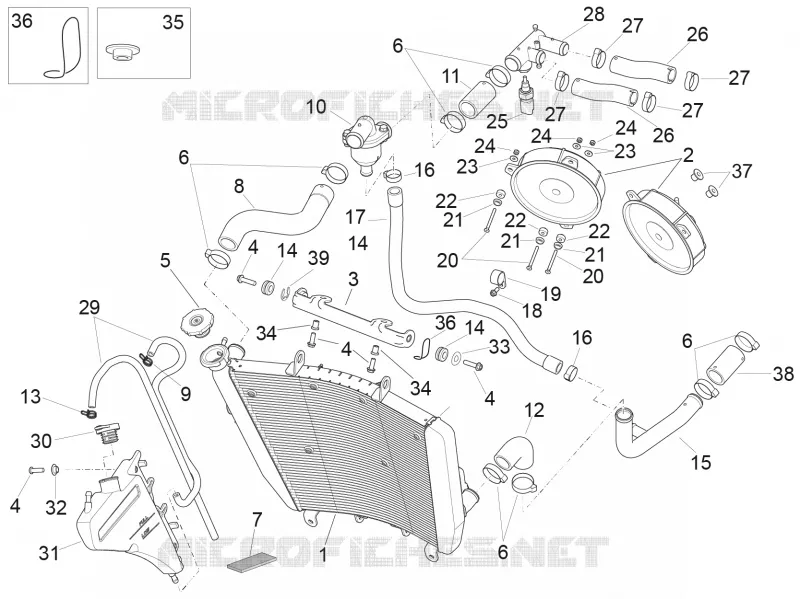

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
