1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E2
5
Parts Catalog
Cdi magneto assy
6

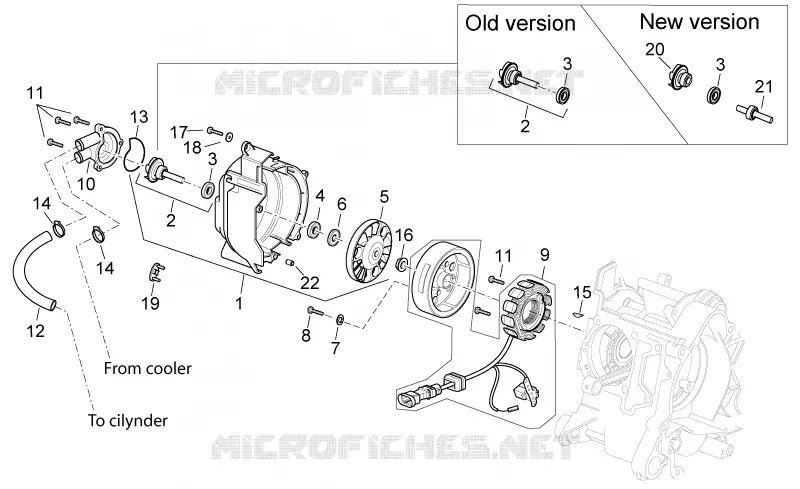

Parts Diagram
Parts Catalog
Frame
by
Rear wheel
Cdi magneto assy
1
2
2
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
1
Flywheel cover cpl.
AP8590017
$168,75 Unit Price incl. VAT
2
Water pump shaft assy.
AP8580143
Not Available
3
Gasket ring
AP8590055
Not Available
3
Oil seal
AP8560018
Not Available
4
Insert
AP8560020
Not Available
5
Pump impeller drive key
AP8580104
Not Available
6
Bearing 28x8x9
AP8577012
Not Available
6
Bearing 22x8x7
AP8580134
Not Available
7
Washer
AP8580162
Not Available
8
Special screw
AP8580163
Not Available
9
Cdi magneto assy
AP8590002
Not Available
9
Cdi magneto assy
AP8580250
Not Available
10
Water pump cover
AP8580094
Not Available
11
Screw
AP8551060
Not Available
12
Water pipe
AP8590052
Not Available
13
O-ring
AP8580084
Not Available
14
Hose clamp D16-24x8*
AP8101573
$3,65 Unit Price incl. VAT
15
Transmission key
AP8550039
Not Available
16
Nut cpl.
AP8550134
Not Available
17
screw
AP8580161
Not Available
18
Washer
AP8550477
Not Available
19
Cover
AP8580116
Not Available
20
Fan
AP8276091
Not Available
21
Water pump shaft assy.
AP8590054
Not Available
22
Locating dowel
AP8551015
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
