1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E2
5
Parts Catalog

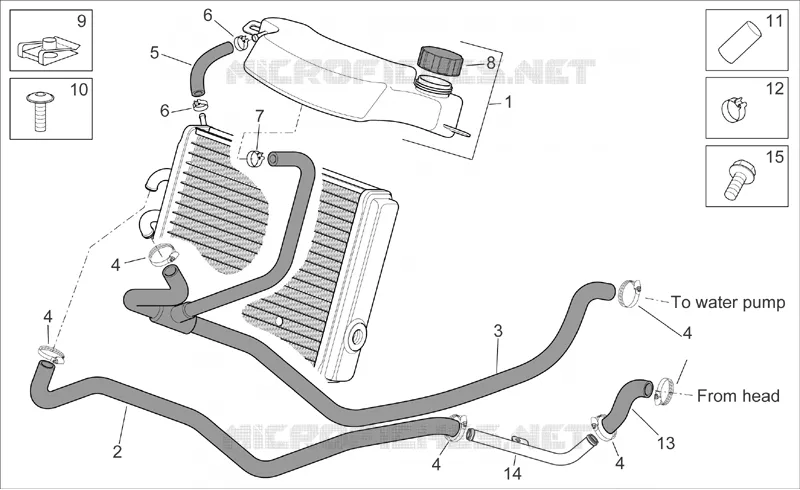

Cooling system
6
Parts Diagram
Parts Catalog
Variator assembly
by
Undersaddle
Cooling system
1
2
3
4
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
1
Expansion tank
AP8178066
$59,64 Unit Price incl. VAT
2
Water cooler hose union
AP8144642
$22,29 Unit Price incl. VAT
3
Cooler-pump pipe
AP8144643
$28,03 Unit Price incl. VAT
4
Hose clamp D16-24x8*
AP8101573
$3,65 Unit Price incl. VAT
5
Breather pipe 7,5X3,5
AP8144506
$8,91 Unit Price incl. VAT
6
White hose clip D.13,5x6
AP8102765
$3,59 Unit Price incl. VAT
7
White hose clip D17,5x8
AP8102349
$0,85 Unit Price incl. VAT
8
Expansion tank plug
AP8570122
$22,29 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
11
Breather plug
AP8144298
$5,38 Unit Price incl. VAT
12
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
13
Head tube union
AP8144705
$6,74 Unit Price incl. VAT
14
Joint
AP8144704
$23,22 Unit Price incl. VAT
15
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
