1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E2
5
Parts Catalog
Central body I
6
Parts Diagram
Parts Catalog
RH controls
by
Saddle unit
Central body I
1
2
2
2
2
3
3
4
5
6
7
8
9
10
10
1
Gasket
AP8144257
Not Available
2
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
3
Plate
AP8134799
$5,38 Unit Price incl. VAT
4
Glove comp.cover, black
AP8178083
Not Available
5
Undersaddle hook cpl.
AP8258034
$6,30 Unit Price incl. VAT
6
Screw 4,2x25*
AP8150423
$3,65 Unit Price incl. VAT
7
Type appr.data cover, black
AP8149478
$5,38 Unit Price incl. VAT
8
Door Plate
AP8178858
$7,23 Unit Price incl. VAT
9
Glove box grille
AP8178086
$7,23 Unit Price incl. VAT
10
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT

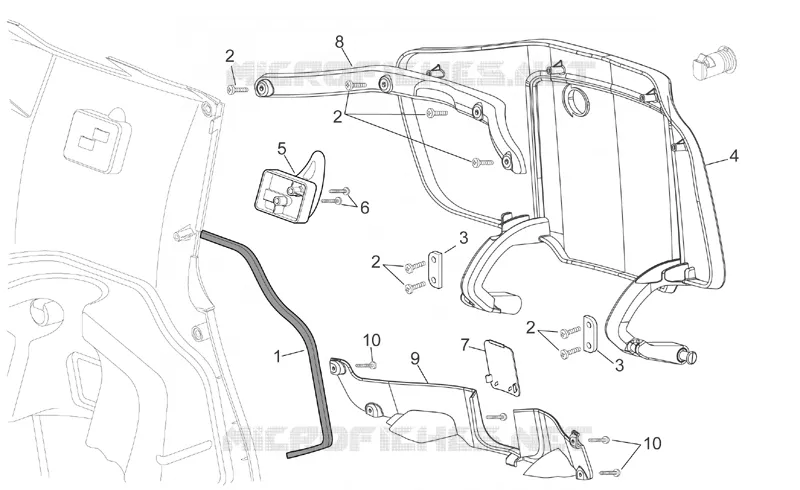

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
