1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2012
4
Trim
Sport City Street 4T 4V E3
5
Parts Catalog
Variator assembly
6
Parts Diagram
Parts Catalog
Cylinder head
by
Lock hardware kit

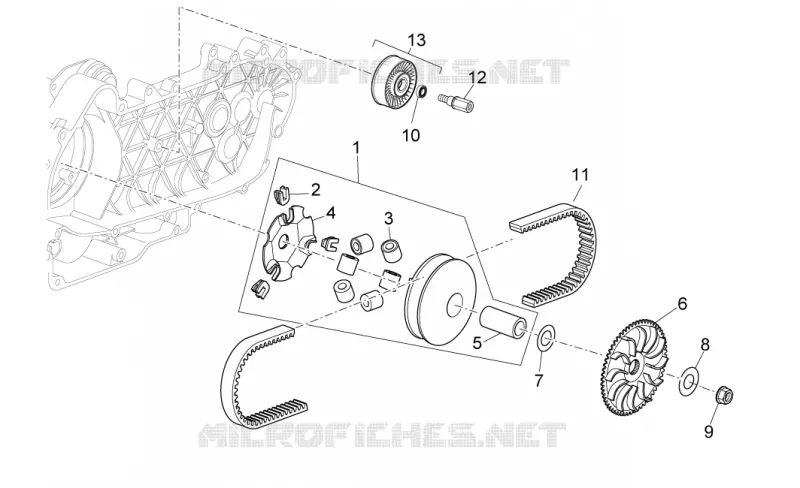

Variator assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Half-pulley assy., driving
CM144403
$101,25 Unit Price incl. VAT
2
Sliding block
434855
Not Available
3
Pin roller weight g.7,4
CM103804
Not Available
4
Roller contrast
485710
$12,02 Unit Price incl. VAT
5
Spacer
483889
$19,92 Unit Price incl. VAT
6
Complete fixed driving half-pulley
845607
$36,35 Unit Price incl. VAT
7
Flat washer
876403
$2,16 Unit Price incl. VAT
8
Plain washer
831363
$1,18 Unit Price incl. VAT
9
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
10
Bearing
82843R
Not Available
11
V-belt
842009
$82,35 Unit Price incl. VAT
12
Special screw
829326
$3,70 Unit Price incl. VAT
13
Toothed pulley
833989
$17,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
