1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2012
4
Trim
Sport City Street 4T 4V E3
5
Parts Catalog

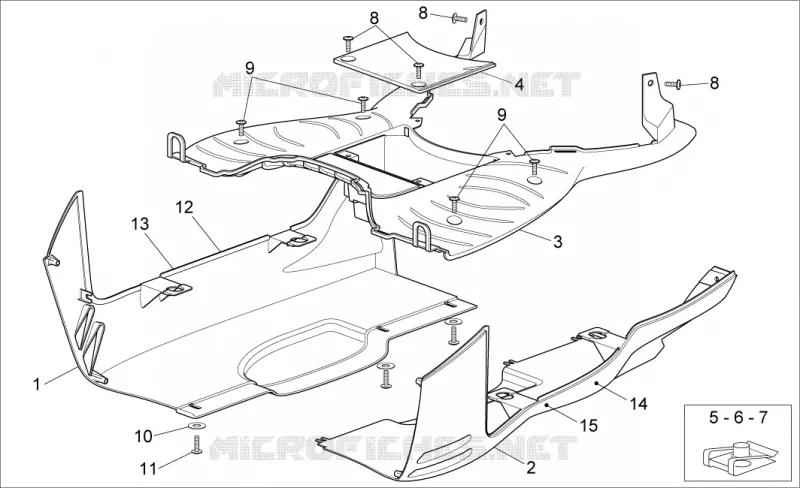

Central body II
6
Parts Diagram
Parts Catalog
RH controls
by
Frame
Central body II
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
15
1
RH underpanel, black
89015300XN6
$101,13 Unit Price incl. VAT
2
LH underpanel, black
89015400XN6
$93,13 Unit Price incl. VAT
3
Foot rest
AP8184447
Not Available
4
Battery cover
AP8184277
$6,30 Unit Price incl. VAT
5
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Clip
AP8202449
$3,65 Unit Price incl. VAT
8
Hex socket screw
AP8150298
$3,65 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
$3,65 Unit Price incl. VAT
10
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
11
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
12
Right Aprilia decal under-footrest
B045147
$9,50 Unit Price incl. VAT
13
Right lower band decal under-footrest
B045149
$5,05 Unit Price incl. VAT
14
Left Aprilia decal under-footrest
B045148
$9,50 Unit Price incl. VAT
15
Left lower band decal under-footrest
B045150
$5,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
