1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2012
4
Trim
Sport City Street 4T 4V E3
5
Parts Catalog

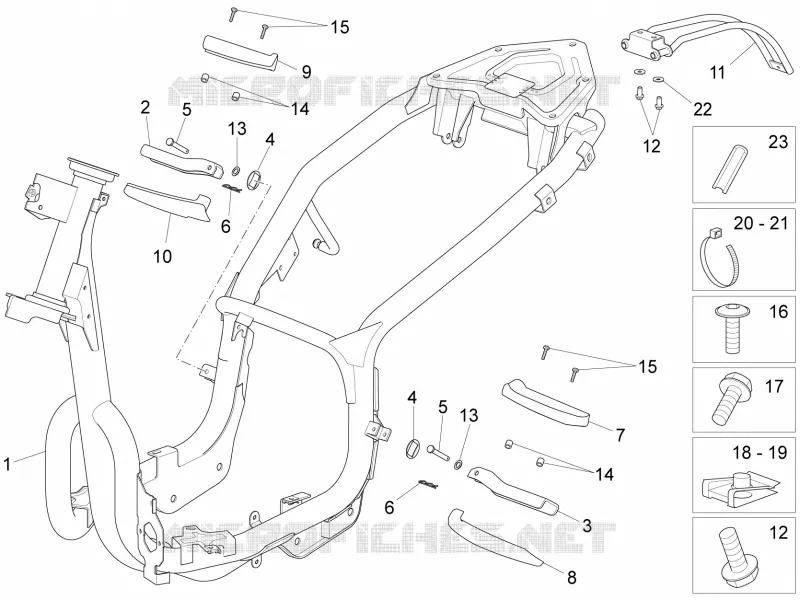

Frame
6
Parts Diagram
Parts Catalog
Central body II
by
Handlebar
Frame
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
1
Not available
8530255
Not Available
2
Rear footrest, RH
AP8146883
Not Available
3
Rear footrest, LH
AP8146884
Not Available
4
Washer hole picture
AP8161023
$3,65 Unit Price incl. VAT
5
Footrest pin
AP8135677
$5,38 Unit Price incl. VAT
6
Split pin
AP8201643
$5,38 Unit Price incl. VAT
7
LH rear footrests rubber
AP8178095
$6,30 Unit Price incl. VAT
8
LH cover rear footrest
AP8184263
$5,38 Unit Price incl. VAT
9
RH rear footrests rubber
AP8178094
$6,30 Unit Price incl. VAT
10
RH rear footrests cover
AP8184262
$5,38 Unit Price incl. VAT
11
Number plate holder support
890883
$20,16 Unit Price incl. VAT
12
Screw w/ flange
AP8152285
$0,51 Unit Price incl. VAT
13
Washer 15x8x0,8
AP8150502
$0,16 Unit Price incl. VAT
14
T bush
AP8121795
$3,38 Unit Price incl. VAT
15
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
16
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
17
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
20
Black hose 98x2*
AP8120422
$3,70 Unit Price incl. VAT
21
Hose clamp
AP8120657
$0,34 Unit Price incl. VAT
22
Washer
AP8150018
$0,34 Unit Price incl. VAT
23
Gasket
AP8144707
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
