1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog

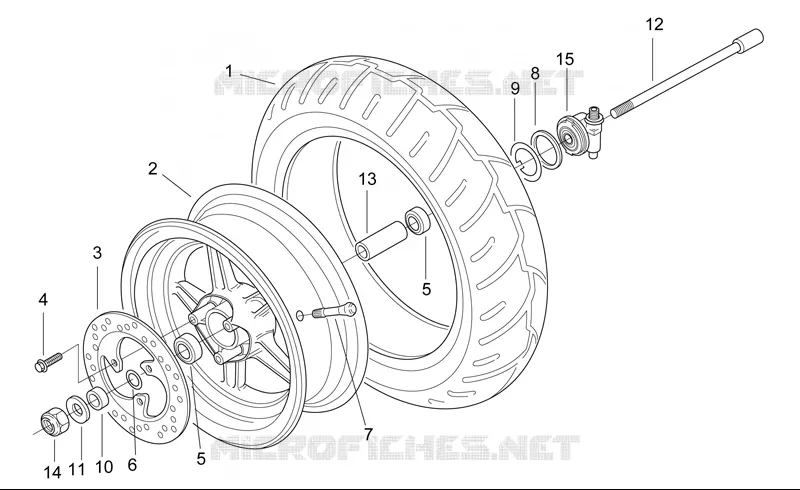

Front wheel
6
Parts Diagram
Parts Catalog
by
Rear wheel - disc brake
Front wheel
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Tyre
0000000
Not Available
2
Front wheel Grey/Gold Sand
AP8208825
Not Available
2
Front wheel, black
AP8208784
Not Available
2
Front wheel Gold
AP8208893
Not Available
2
Front wheel, blue
AP8208708
Not Available
2
Front wheel Grey/Gold Sand
AP8208896
Not Available
2
Front wheel Gold
AP8208826
Not Available
2
Front wheel Grey/RifleTube
AP8208705
Not Available
2
Front wheel, blue
AP8208908
Not Available
3
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
4
Hex socket screw M8x25
AP8225358
Not Available
5
Bearing
AP8225123
$21,37 Unit Price incl. VAT
6
Gasket ring
AP8125782
$18,12 Unit Price incl. VAT
7
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
8
O-ring
AP8120864
Not Available
9
Drive key
AP8120865
$5,38 Unit Price incl. VAT
10
Front wheel spacer
AP8221119
$3,65 Unit Price incl. VAT
11
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
12
Front wheel spindle
AP8225271
$19,68 Unit Price incl. VAT
13
Front wheel ins.spacer
AP8225323
$8,01 Unit Price incl. VAT
14
Low self-locking nut M12x1,25
AP8150373
$3,65 Unit Price incl. VAT
15
Odometer gear
AP8201925
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
