1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog
Front lights USA
6
Parts Diagram
Parts Catalog
Injection unit (Ditech)
by
Cylinder with piston

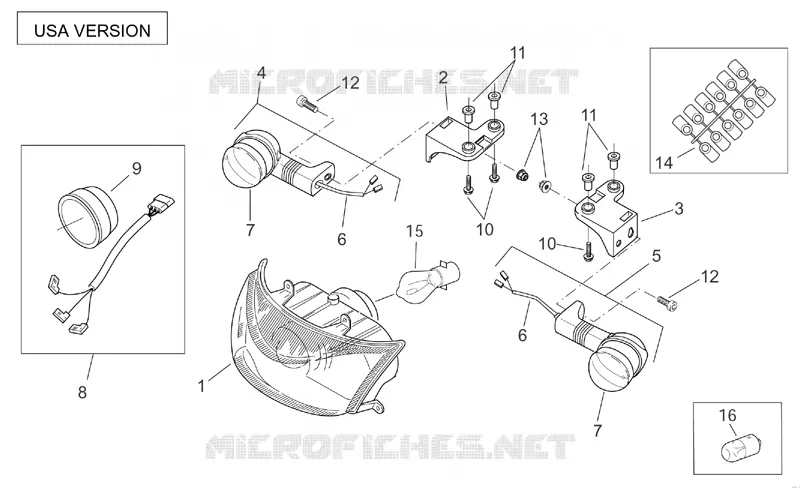

Front lights USA
1
2
3
4
5
6
6
7
7
8
9
10
10
11
11
12
12
13
14
15
16
1
Headlight
AP8224193
Not Available
2
RH turn indicator support
AP8249100
Not Available
3
LH turn indicator support
AP8249101
Not Available
4
RH front/LH rear turn indic.
AP8224197
Not Available
5
LH front/RH rear turn indic.
AP8224198
$13,23 Unit Price incl. VAT
6
Front turn indicator wiring
AP8224259
Not Available
7
Turn indicator lens
AP8224258
$6,35 Unit Price incl. VAT
8
Headlight wiring w/harness
AP8224251
$15,37 Unit Price incl. VAT
9
Front headlight guard
AP8212841
$6,30 Unit Price incl. VAT
10
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
11
T bush
AP8121795
$3,38 Unit Price incl. VAT
12
Hex socket screw M6x16
AP8150052
$3,65 Unit Price incl. VAT
13
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
14
Front light adj.spacers set
AP8249136
Not Available
15
Lamp S2 35/35w 12v
AP8224391
Not Available
16
Lamp R10W 12v
AP8224390
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
