1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog

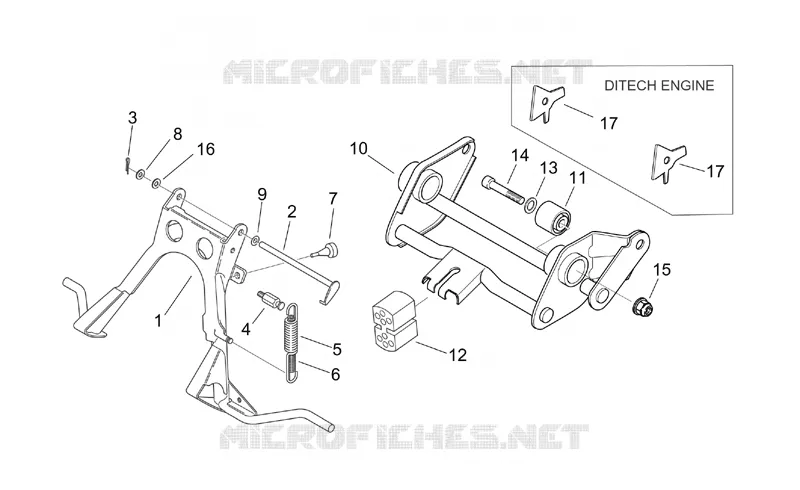

Central stand - Connecting rod
6
Parts Diagram
Parts Catalog
Central and rear body decal
by
Electrical system
Central stand - Connecting rod
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
1
Central stand
AP8235090
Not Available
1
Central stand
AP8235072
Not Available
2
Stand pin mm 141,5
AP8221315
$7,23 Unit Price incl. VAT
2
Stand pin mm 151,8
AP8221328
Not Available
3
Split pin
AP8101606
Not Available
4
Spring coupling screw
AP8221323
$7,23 Unit Price incl. VAT
5
Lateral stand spring
AP8221317
$17,07 Unit Price incl. VAT
6
Internal lateral stand spring
AP8221318
$13,53 Unit Price incl. VAT
7
Rubber spacer
AP8220238
$4,62 Unit Price incl. VAT
8
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
9
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
10
Engine connecting element
AP8235110
$118,20 Unit Price incl. VAT
11
Silent-block
AP8220346
$13,53 Unit Price incl. VAT
12
Fase drift
AP8220399
$6,30 Unit Price incl. VAT
13
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
14
Hex socket screw
AP8150086
$3,65 Unit Price incl. VAT
15
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
16
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
17
Connecting rod plate
AP8234196
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
