Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Handlebar - Buttons
6
Parts Diagram
Parts Catalog
Fuel tank I
by
Cylinder head/Throttle body
Handlebar - Buttons
1
2
3
4
5
6
7
8
9
10
11
1
Bouton avertisseur
AP8124209
$10,76 Unit Price incl. VAT
2
Rivet en plastique
AP8102671
$0,16 Unit Price incl. VAT
3
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
4
Vis bride
AP8152290
$3,65 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
6
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
7
Vis
AP8150086
$3,65 Unit Price incl. VAT
8
Bouchon
AP8104546
$5,38 Unit Price incl. VAT
9
Bouton démarrage
AP8124208
$11,69 Unit Price incl. VAT
10
Poussoir clignotants
AP8212767
$17,07 Unit Price incl. VAT
11
Déviateur feux;
AP8124081
$12,45 Unit Price incl. VAT

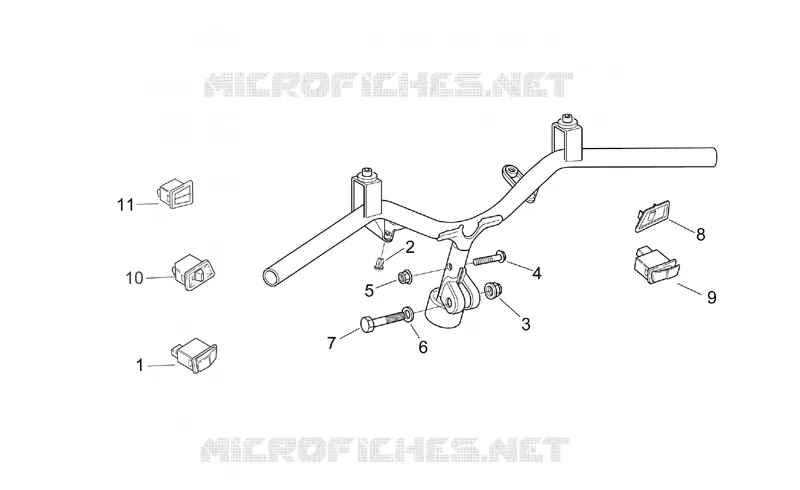

Find the detailed Handlebar - Buttons APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
