Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Fork II
by
Rear body I
Front wheel
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Pneu avant/arrière
AP8209085
$152,72 Unit Price incl. VAT
2
Front wheel Grey/Gold Sand
AP8208825
Not Available
2
Front wheel Grey/RifleTube
AP8208899
Not Available
2
Front wheel Gold
AP8208893
Not Available
2
Front wheel Grey/Gold Sand
AP8208896
Not Available
2
Front wheel Gold
AP8208826
Not Available
2
Front wheel Grey/RifleTube
AP8208705
Not Available
3
Disque frein
AP8213231
$20,52 Unit Price incl. VAT
4
Hex socket screw M8x25
AP8225358
Not Available
5
Roulement;
AP8225123
$21,37 Unit Price incl. VAT
6
Bague d'étanchéité
AP8125782
$18,12 Unit Price incl. VAT
7
Soupape tubeless;
AP8201546
$5,38 Unit Price incl. VAT
8
O-ring
AP8120864
Not Available
9
Entraînement
AP8120865
$5,38 Unit Price incl. VAT
10
Entretoise roue avant
AP8221119
$3,65 Unit Price incl. VAT
11
Rondelle fer plate
AP8152018
$3,65 Unit Price incl. VAT
12
Axe de roue AV;
AP8225271
$19,68 Unit Price incl. VAT
13
Entretoise int. roue av.
AP8225323
$8,01 Unit Price incl. VAT
14
Ecrou autofr. bas
AP8150373
$3,65 Unit Price incl. VAT
15
Odometer gear
AP8201925
Not Available

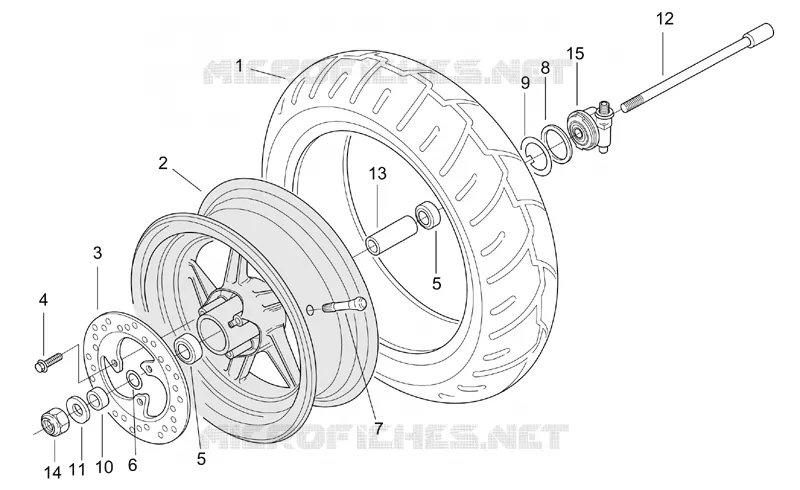

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
