Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Transmission final drive
by
Front fork III
Water pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
O-ring
AP8515083
Not Available
2
Water outlet union
AP8515084
Not Available
2
Water outlet union
AP8515099
Not Available
3
Fairlead
AP8515076
Not Available
4
Impeller
AP8515085
Not Available
5
Water pump shaft assy.cpl.
AP8515086
Not Available
6
Stop ring
AP8515087
Not Available
7
Thrust washer
AP8515088
Not Available
8
Bearing
AP8515089
Not Available
9
Oil level rod cpl.
AP8550586
Not Available
10
O-ring
AP8550334
Not Available
11
Transm.oil unload screw
AP8550361
Not Available
12
Gasket
AP8551003
Not Available
13
Carb-pump by-pass pipe
AP8515101
Not Available
14
Hose clamp
AP8515050
Not Available

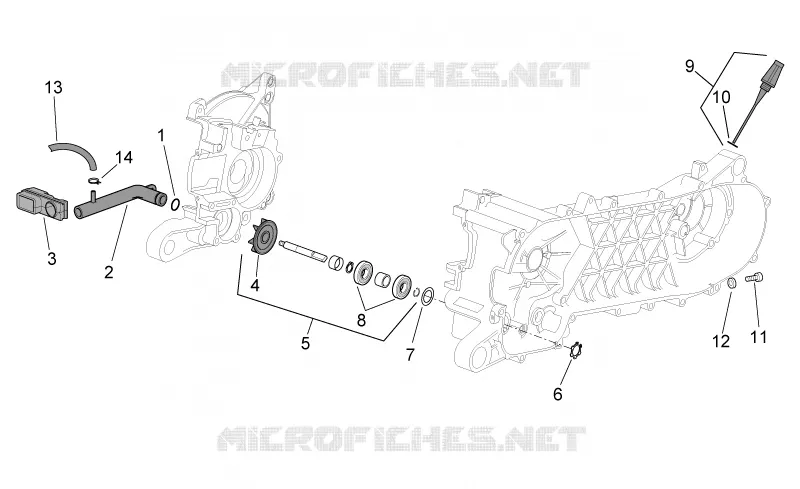

Find the detailed Water pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
