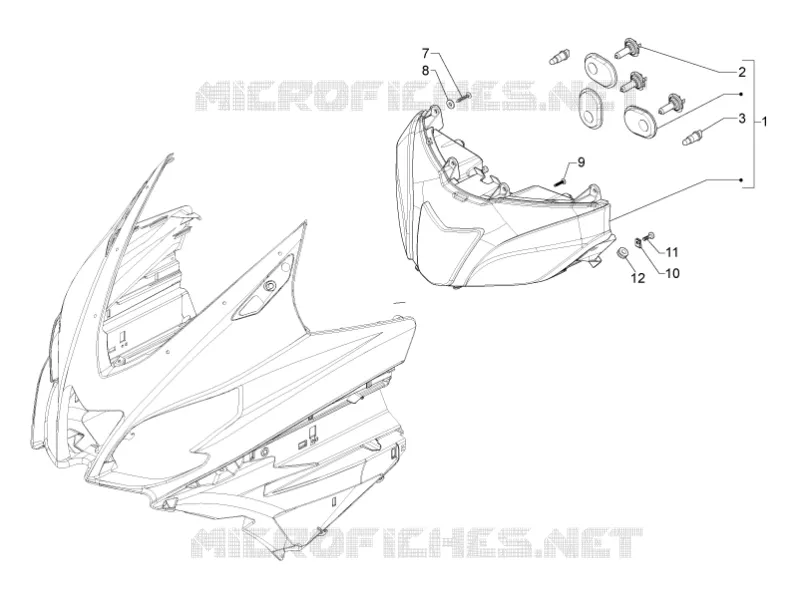

Front headlamps - Turn signal lamps
1
2
3
7
8
9
10
11
12
1
Front light kit
2R000161
$607,26 Unit Price incl. VAT
2
Lamp H11 12V-55W
640754
$13,25 Unit Price incl. VAT
3
Lamp H8 12V 35W
893929
$5,09 Unit Price incl. VAT
7
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
8
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
9
Screw w/ flange M5x12
AP8152302
Not Available
10
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
11
Light adjustment self-threading screw
AP8150515
$3,65 Unit Price incl. VAT
12
Rubber spacer
AP8120405
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
