1
Engine displacement
850
2
Model
SRV
3
Year
2013
4
Trim
SRV 4T 8V E3
5
Parts Catalog
Wheel huosing - Mudguard
6

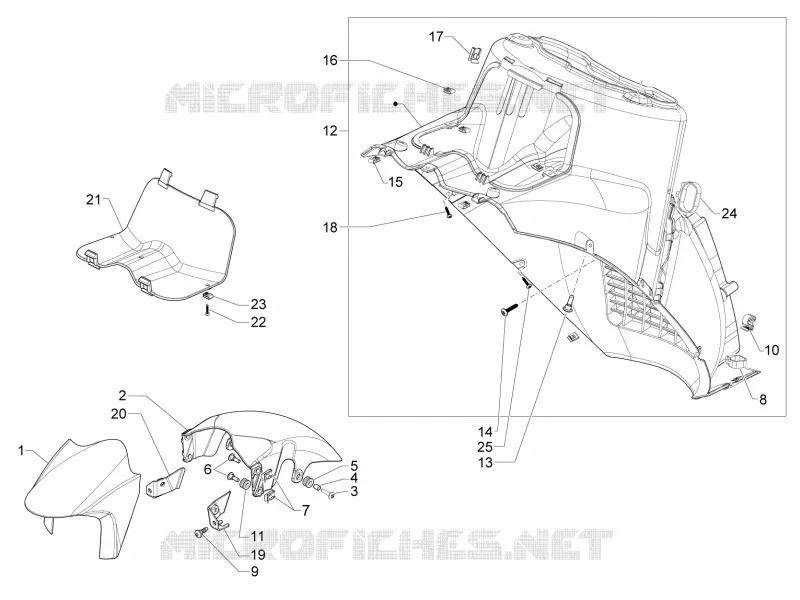

Parts Diagram
Parts Catalog
Oil pump
by
Saddle/seats
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Front mudguard (ant.)
67447600XN2
Not Available
1
Front mudguard (ant.)
674476
Not Available
2
Front mudguard (post.)
674477000C
Not Available
3
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
4
Spacer
598288
$3,65 Unit Price incl. VAT
5
Pad
217163
$0,54 Unit Price incl. VAT
6
screw
CM179202
$0,25 Unit Price incl. VAT
7
Spring plate M6
254485
$0,34 Unit Price incl. VAT
8
Non return spring
CM006912
$0,42 Unit Price incl. VAT
9
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
10
Spring
CM013201
$0,40 Unit Price incl. VAT
11
Pad
217163
$0,54 Unit Price incl. VAT
12
Front wheel housing
674473
$62,91 Unit Price incl. VAT
13
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
14
screw
CM179304
$0,50 Unit Price incl. VAT
15
Spring plate
CM017410
$0,34 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Spring plate M6
254485
$0,34 Unit Price incl. VAT
18
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
19
Left U/bolt
674829
$4,60 Unit Price incl. VAT
20
Right U/bolt
674828
$4,60 Unit Price incl. VAT
21
Housing closing
674825
$39,81 Unit Price incl. VAT
22
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
23
Spring plate
CM017410
$0,34 Unit Price incl. VAT
24
Non return spring
CM006902
$0,92 Unit Price incl. VAT
25
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
