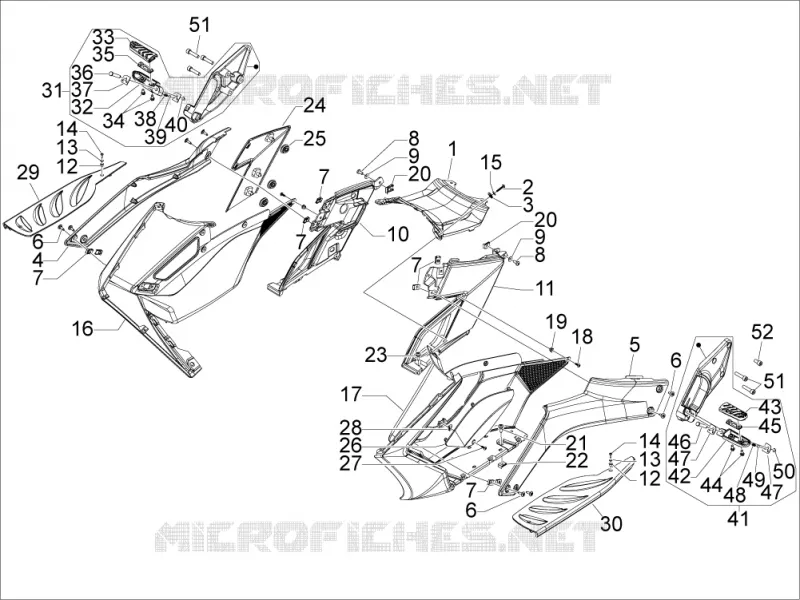

1
Tunnel central cover
656197000C
$11,55 Unit Price incl. VAT
2
Self-tapping screw
CM178610
$0,17 Unit Price incl. VAT
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
Tunnel right lateral cover
65315100H6
Not Available
4
Tunnel right lateral cover
653151
$18,45 Unit Price incl. VAT
5
Tunnel left lateral cover
65315000H6
Not Available
5
Tunnel left lateral cover
653150
$17,08 Unit Price incl. VAT
6
Screw w/ flange M5x12
AP8152302
Not Available
7
Spring plate M5
248419
$0,67 Unit Price incl. VAT
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
9
Washer
013963
$0,19 Unit Price incl. VAT
10
Right lateral protection
653148
Not Available
10
Right lateral protection
65314800H6
$49,49 Unit Price incl. VAT
11
Left lateral protection
65314700H6
$49,71 Unit Price incl. VAT
11
Left lateral protection
653147
Not Available
12
Spacer
655783
$0,99 Unit Price incl. VAT
13
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
14
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
15
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
16
RH footrest
674820000C
$31,37 Unit Price incl. VAT
17
LH footrest
674821000C
$34,94 Unit Price incl. VAT
18
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
19
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
20
Spring plate
CM017410
$0,34 Unit Price incl. VAT
21
screw
CM179202
$0,25 Unit Price incl. VAT
22
Spring plate M6
254485
$0,34 Unit Price incl. VAT
23
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
24
Oil inspection hatch
65333700H6
$32,35 Unit Price incl. VAT
24
Insp. door
653337
$7,39 Unit Price incl. VAT
25
Elastic drift
463195
Not Available
26
Spark plug insp. door
653139000C
$7,99 Unit Price incl. VAT
27
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
28
Spring plate
CM017410
$0,34 Unit Price incl. VAT
29
Rh mat
655787
Not Available
30
Lh mat
655786
$12,53 Unit Price incl. VAT
31
Complete right passenger footrest
656428
Not Available
32
RH footpad
656429000C
Not Available
33
Support rubber part
GU32443210
$12,45 Unit Price incl. VAT
34
Screw w/ flange
656510
Not Available
35
Plate
GU32441210
$2,37 Unit Price incl. VAT
36
Footrest pin
656511
Not Available
37
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
38
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
39
Ball
002139
$0,11 Unit Price incl. VAT
40
Safety washer
006408
$0,09 Unit Price incl. VAT
41
Complete left passenger footrest
656507
Not Available
42
LH footrest
656509000C
Not Available
43
Support rubber part
GU32443211
$12,45 Unit Price incl. VAT
44
Screw w/ flange
656510
Not Available
45
Plate
GU32441210
$2,37 Unit Price incl. VAT
46
Footrest pin
656511
Not Available
47
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
48
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
49
Ball
002139
$0,11 Unit Price incl. VAT
50
Safety washer
006408
$0,09 Unit Price incl. VAT
51
Hex socket screw
654484
$0,94 Unit Price incl. VAT
52
Screw
654965
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
