1
Engine displacement
50
2
Model
TUONO
3
Year
2003
4
Trim
RS 50 Tuono
5
Parts Catalog

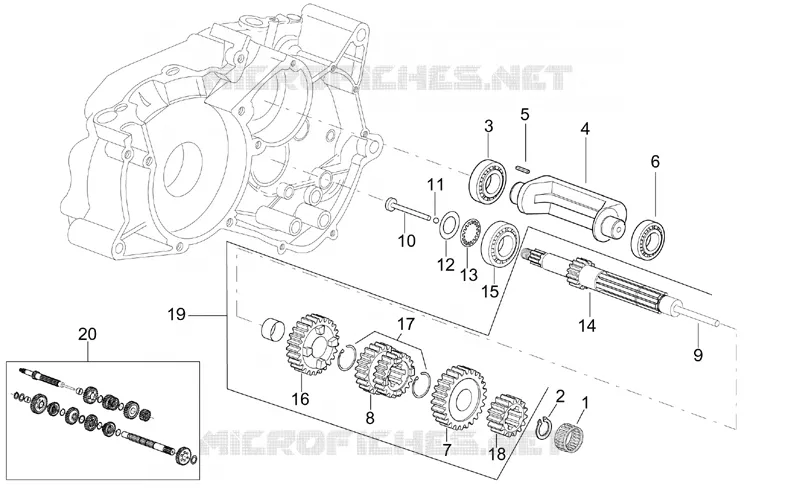

Primary gear shaft
6
Parts Diagram
Parts Catalog
Cylinder - Piston
by
Gearbox driven shaft
Primary gear shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Roller cage DB14-12
AP8206281
Not Available
2
Outside circlip D14
AP8501478
Not Available
3
Bearing D15x35x11
AP8502624
Not Available
4
Balance shaft
AP8206231
Not Available
5
Key Balance shaft 4x4x8
AP8206263
$4,82 Unit Price incl. VAT
6
Bearing D17x40x12
AP8510039
Not Available
7
6th pinion gear Z=25
AP8206610
Not Available
8
3rd-4th pinion gear Z=19/22
AP8206608
Not Available
9
Push rod D5x116,6
AP8206617
Not Available
10
Clutch push rod D13
AP8502836
Not Available
11
Ball 3/16"
AP8502652
Not Available
12
Blue steel washer D17,2x30
AP8502498
Not Available
13
Conical spring washer
AP8206260
Not Available
14
Primary gear shaft
AP8206604
Not Available
15
Bearing D17x40x12
AP8502626
Not Available
16
5th pinion gear Z=24
AP8206609
$45,51 Unit Price incl. VAT
17
Outside circlip D18
AP8501471
Not Available
18
2nd pinion gear Z=16
AP8206607
Not Available
19
Primary gear shaft assy. 6 v.ta'
AP8206622
Not Available
20
Gear box assy 6 v.ta'
AP8206624
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
