1
Engine displacement
50
2
Model
TUONO
3
Year
2003
4
Trim
RS 50 Tuono
5
Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Rear footrests
by
Front fork II

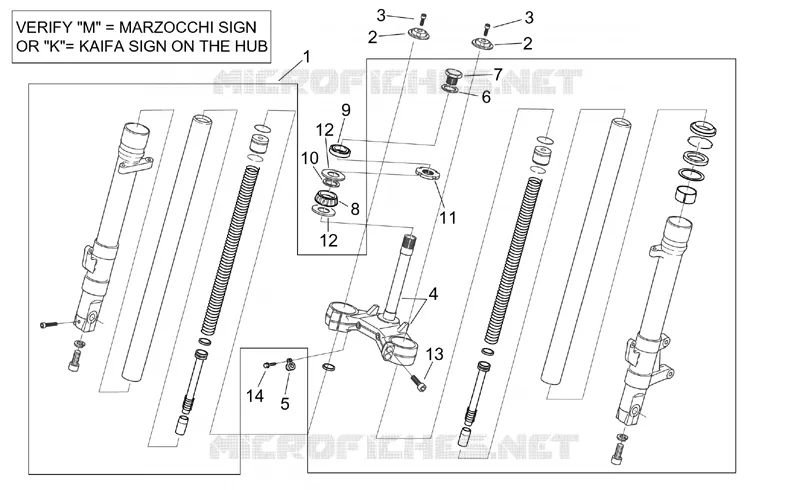

Front fork I
1
2
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
1
Front fork
AP8203981
Not Available
2
Cover
AP8202156
Not Available
3
Hex socket screw
AP8150280
$3,65 Unit Price incl. VAT
4
Stem base
AP8223117
Not Available
4
Stem base
AP8203954
$310,78 Unit Price incl. VAT
5
Black hose 178x4
AP8120416
$5,38 Unit Price incl. VAT
6
Washer
AP8203953
Not Available
7
Plug
AP8203952
Not Available
8
Roller bearing
AP8110024
$15,98 Unit Price incl. VAT
9
Ball bearing
AP8110025
$10,00 Unit Price incl. VAT
10
Steering washer
AP8203550
$3,65 Unit Price incl. VAT
11
Fork lower ring nut
AP8203588
$10,00 Unit Price incl. VAT
12
Gasket ring
AP8101106
Not Available
13
screw M8x25
AP8203589
Not Available
13
screw
AP8223118
Not Available
14
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
