1
Engine displacement
50
2
Model
TUONO
3
Year
2003
4
Trim
RS 50 Tuono
5
Parts Catalog
Exhaust unit
6

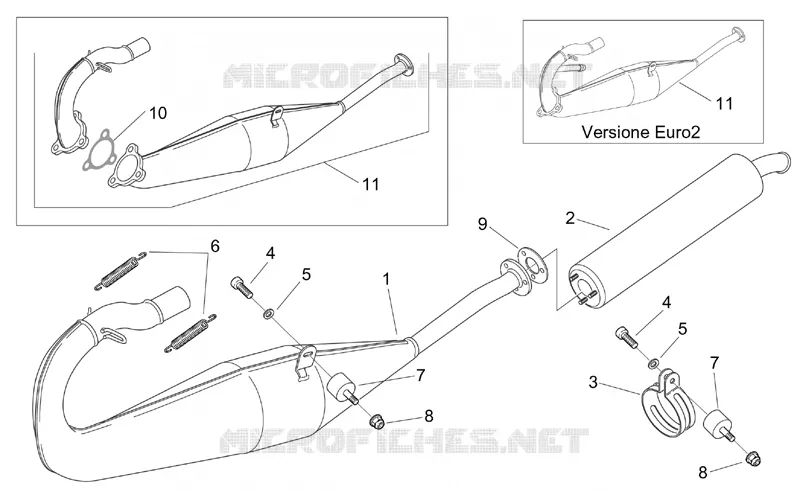

Parts Diagram
Parts Catalog
Engine - Gear lever
by
Front wheel
Exhaust unit
1
2
3
4
4
5
5
6
7
7
8
8
9
10
11
11
1
Cat.exhaust pipe
AP8219591
Not Available
2
Silencer
AP8219546
Not Available
3
Silencer clip
AP8102432
$12,45 Unit Price incl. VAT
4
Hex socket screw
AP8152112
$3,65 Unit Price incl. VAT
5
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
6
Coil pull spring *
AP8101259
$5,38 Unit Price incl. VAT
7
Silent-block
AP8120910
Not Available
8
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
9
Silencer gasket
AP8120812
$7,23 Unit Price incl. VAT
10
Exhaust pipe flange gasket
AP8219325
Not Available
11
Cat.exhaust pipe
AP8219578
Not Available
11
Silencer E2
AP8219611
Not Available
11
Silencer E2
AP8219610
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
