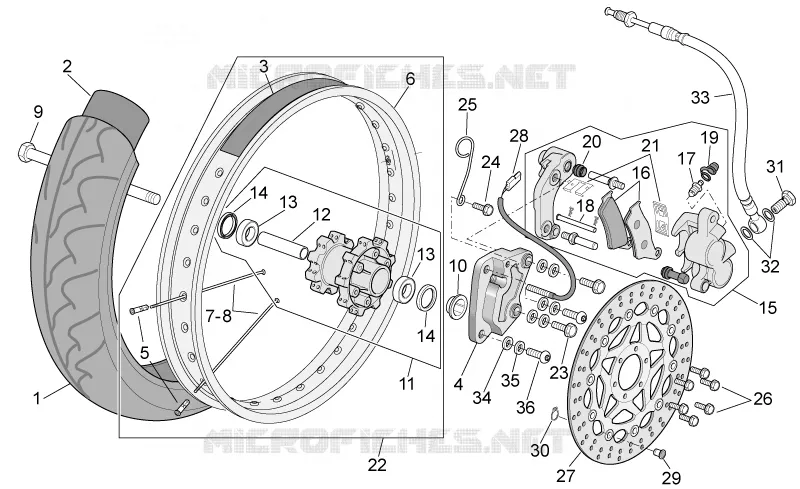

Front wheel FOR MX SuperMotard FROM 2004

Front wheel

1

Tyre

0000000

Not Available

2

Tyre

0000000

Not Available

3

Rear wheel flap 18"

AP8109281

$13,53 Unit Price incl. VAT

4

Brake hanger plate

AP8134987

Not Available

5

Nipples D3,5

AP8108672

$6,30 Unit Price incl. VAT

6

Front wheel

AP8128053

$174,87 Unit Price incl. VAT

7

RH front spoke D.3,5

AP8128054

Not Available

8

LH front spoke D.3,5

AP8128078

$1,15 Unit Price incl. VAT

9

Front hub pin

AP8225394

Not Available

10

Front LH whe.ou.spacer

AP8125578

Not Available

11

Front hub

AP8125916

Not Available

12

Spacer

AP8125590

Not Available

13

Hub bearing D17x40x12

AP8110045

$9,18 Unit Price incl. VAT

14

Oil seal 22x40x7

AP8125589

Not Available

15

LH front brake caliper, grey

AP8113580

Not Available

16

Pads (pair)

AP8113593

Not Available

17

Air bleed valve

AP8133518

$12,30 Unit Price incl. VAT

18

Pin with cotter

AP8133517

$15,37 Unit Price incl. VAT

19

Bleed valve cap

AP8133561

Not Available

20

Guard

AP8113548

$33,81 Unit Price incl. VAT

21

Spring

AP8123550

Not Available

22

Front wheel

AP8128097

Not Available

23

Screw w/ flange M8x30

AP8152288

$1,70 Unit Price incl. VAT

24

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

25

Cable-guide

AP8161007

Not Available

26

Screw w/ flange M8x20

AP8152286

$0,25 Unit Price incl. VAT

27

Front brake disc D320

AP8113567

Not Available

28

Magnetic sensor

AP8224573

Not Available

29

Magneto

AP8127596

$5,09 Unit Price incl. VAT

30

Circlip

AP8104743

$0,27 Unit Price incl. VAT

31

Oil pipe screw

AP8113003

$3,65 Unit Price incl. VAT

32

Washer 10x14x1,6*

AP8113004

$0,34 Unit Price incl. VAT

33

Front brake hose

AP8133660

$37,28 Unit Price incl. VAT

34

Washer 8,5x15x0,8

AP8150376

$0,08 Unit Price incl. VAT

35

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

36

Torx Screw M8x30

AP9100864

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
