1
Engine displacement
125
2
Model
MX
3
Year
2004
4
Trim
MX SuperMotard
5
Parts Catalog

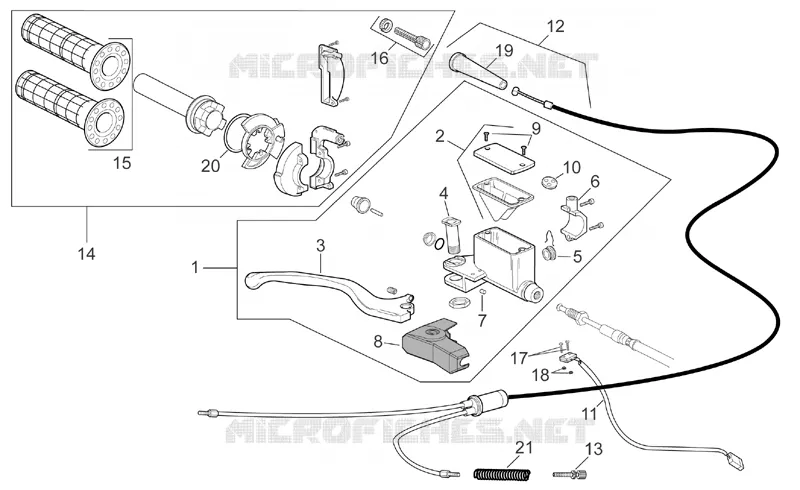

RH controls
6
Parts Diagram
Parts Catalog
Dashboard-Mirrors-Handlebar
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Front brake mast.cyl cpl D.13
AP8113630
Not Available
2
Pump cover
AP8113672
$11,72 Unit Price incl. VAT
3
Front brake lever
AP8118416
Not Available
4
Brake lever pin
AP8113058
Not Available
5
Master cyl.level window
AP8113414
Not Available
6
Brake lever U-bolt
AP8113203
$21,37 Unit Price incl. VAT
7
Front brake lever stop
AP8113522
Not Available
8
Lever cover
AP8113204
Not Available
9
screw
AP8113537
Not Available
10
Antiemulsion device
AP8113349
Not Available
11
Front brake switch+harness
AP8124597
Not Available
12
Throttle cable
AP8114361
Not Available
13
Throttle cable adjuster
AP8114272
Not Available
14
Throttle+hand grips, black
AP8118672
$43,33 Unit Price incl. VAT
15
Handgrip pair, black
AP8218628
Not Available
16
Throttle cable adjuster
AP8114371
$2,33 Unit Price incl. VAT
17
Special cap screw M2x12*
AP8152223
$0,11 Unit Price incl. VAT
18
Nut M2*
AP8152224
Not Available
19
Throttle adjuster cap
AP8220143
$2,97 Unit Price incl. VAT
20
Spacer
AP8221356
$0,38 Unit Price incl. VAT
21
Protection spring
AP8121318
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
