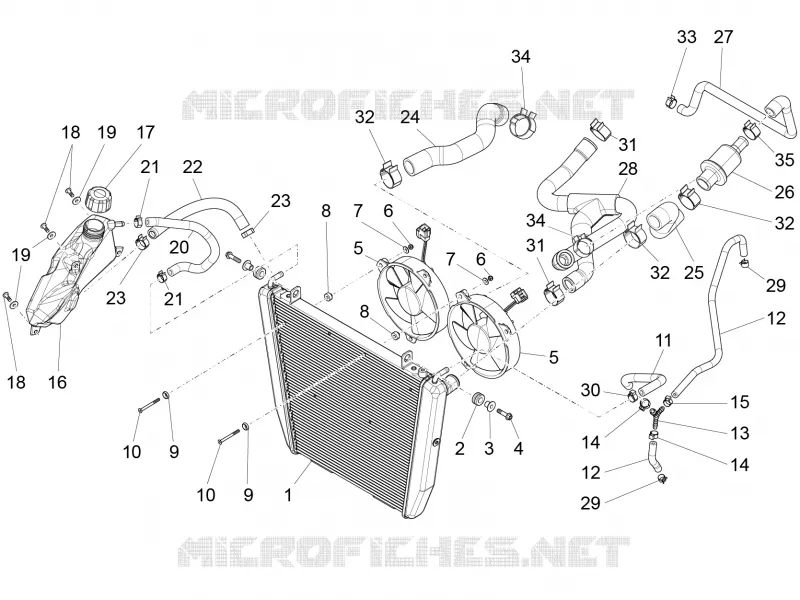

Cooling system FOR Caponord FROM 2014

Cooling system

1

Water cooler

B046128

Not Available

2

Rubber spacer

AP8120030

$0,85 Unit Price incl. VAT

3

T bush

AP8221023

$0,93 Unit Price incl. VAT

4

Screw w/ flange M6x25

AP8152280

$0,25 Unit Price incl. VAT

5

Fan, cpl.

622055

Not Available

6

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

7

Washer 4,3x12x1

AP8150011

$0,25 Unit Price incl. VAT

8

Spacer

893513

$0,53 Unit Price incl. VAT

9

Washer d4,5

893823

$3,70 Unit Price incl. VAT

10

Screw

893514

$1,59 Unit Price incl. VAT

11

Breather pipe 7,5X3,5

AP8144506

$8,91 Unit Price incl. VAT

12

Breather pipe

897036

$3,78 Unit Price incl. VAT

13

"Y" union

897035

$3,23 Unit Price incl. VAT

14

Hose clamp

CM001901

$0,76 Unit Price incl. VAT

15

Hose clamp

CM001903

$0,84 Unit Price incl. VAT

16

Expansion tank

B045075

Not Available

17

Tank cap

573454

Not Available

18

Self-tap screw 5x14

AP8150509

$0,51 Unit Price incl. VAT

19

Washer 5,5x15x1,6*

AP8150013

$3,65 Unit Price incl. VAT

20

Breather pipe

2B000174

$18,14 Unit Price incl. VAT

21

Spring clamp 15/12

CM226901

$4,82 Unit Price incl. VAT

22

Water rad.feed pipe

2B000175

$14,89 Unit Price incl. VAT

23

Spring clamp 19/12

CM226902

$1,88 Unit Price incl. VAT

24

Connecting pipe

2B000055

$21,98 Unit Price incl. VAT

25

Cooler pipe

2B000054

$24,38 Unit Price incl. VAT

26

Thermostat valve set 85°C

834232

$33,54 Unit Price incl. VAT

27

Motor-pump valve tube

894511

$8,84 Unit Price incl. VAT

28

3-way pipe

894512

$55,51 Unit Price incl. VAT

29

Hose clamp

898060

$0,77 Unit Price incl. VAT

30

Spring clamp 15/12

CM226901

$4,82 Unit Price incl. VAT

31

Spring clamp 29/12

CM226909

$4,46 Unit Price incl. VAT

32

Spring clamp 32/12

CM226905

$3,65 Unit Price incl. VAT

33

Spring clamp 22/12

CM226903

$3,65 Unit Price incl. VAT

34

Spring clamp 35/12

CM226906

$3,70 Unit Price incl. VAT

35

Spring clamp 15/12

CM226908

$5,53 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
