Rear body FOR Caponord FROM 2014

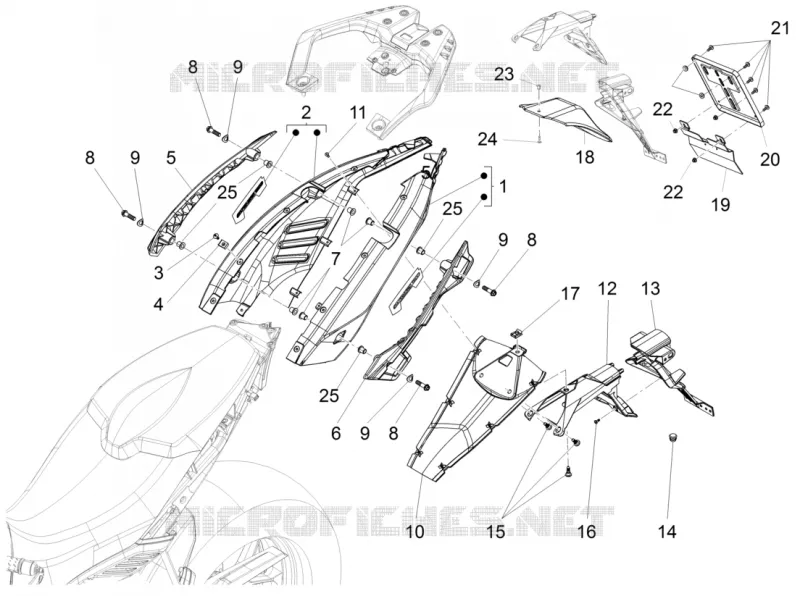

Rear body

1

RR COVER

2H000474000XN2

$379,18 Unit Price incl. VAT

1

LH rear fairing, white

2H000062000BM

$379,18 Unit Price incl. VAT

1

LH rear fairing, red

2H000125000XRC

$379,18 Unit Price incl. VAT

1

LH rear fairing, grey

2H000104000YE5

$379,18 Unit Price incl. VAT

2

RH rear fairing, grey

2H000103000YE5

$379,18 Unit Price incl. VAT

2

RH rear fairing, red

2H000124000XRC

$379,18 Unit Price incl. VAT

2

RH rear fairing, white

2H000061000BM

$379,18 Unit Price incl. VAT

2

RR COVER

2H000473000XN2

$379,18 Unit Price incl. VAT

3

Hex socket screw Black M5x12

896174

$0,34 Unit Price incl. VAT

4

Spring plate M5

248419

$0,67 Unit Price incl. VAT

5

Right bags coupling

B044849

$17,83 Unit Price incl. VAT

6

Left bags coupling

B044850

$17,83 Unit Price incl. VAT

7

T bush

AP8125882

$3,65 Unit Price incl. VAT

8

Low head socket screw

AP8152187

$3,65 Unit Price incl. VAT

9

Washer 15x8x0,8

AP8150502

$0,16 Unit Price incl. VAT

10

Saddle mounting closing

B04485100BM

$176,76 Unit Price incl. VAT

10

Saddle mounting closing

B04485100YE5

$176,76 Unit Price incl. VAT

10

Painted red saddle mounting closing

B04485100XRC

$168,76 Unit Price incl. VAT

11

Self-tapping screw

AP8150444

$0,17 Unit Price incl. VAT

12

Upper Number plate holder

858840

$15,05 Unit Price incl. VAT

13

Lower Number plate holder

858842

$10,75 Unit Price incl. VAT

14

Cover

894657

$0,19 Unit Price incl. VAT

15

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

16

Self-tapping screw

AP8150444

$0,17 Unit Price incl. VAT

17

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

18

Upper Rear mudguard

895487

Not Available

19

Lower Rear mudguard

895488

$45,48 Unit Price incl. VAT

20

Number plate holder

895914

$12,04 Unit Price incl. VAT

21

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

22

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

23

Rivet, male

AP8144563

$0,32 Unit Price incl. VAT

24

Rivet, female

AP8144616

$0,23 Unit Price incl. VAT

25

T bush

2B000291

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
