by

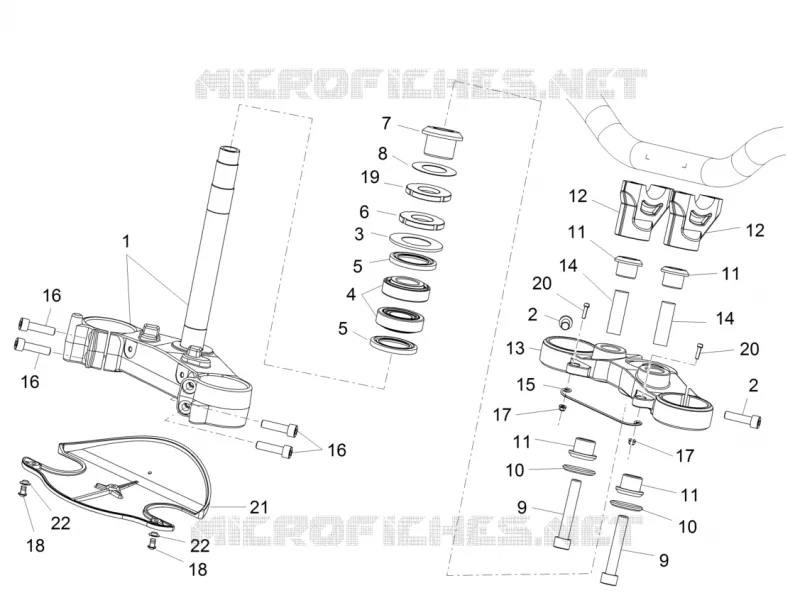

Steering
22
22
21
20
20
19
18
18
17
17
16
16
16
15
14
14
13
12
12
11
11
11
11
10
10
9
9
8
7
6
5
5
4
3
2
2
1
1
Lower fork plate
B045254
$487,38 Unit Price incl. VAT
2
Low head socket screw
AP8152187
$3,65 Unit Price incl. VAT
3
Dust cover ring
AP8123644
$1,01 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
5
Dust cover ring
AP8123641
$8,12 Unit Price incl. VAT
6
Ring nut M35X1
B046343
$22,46 Unit Price incl. VAT
7
Handlebar plate plug
B045392
$26,74 Unit Price incl. VAT
8
Flat washer
2B000099
$4,36 Unit Price incl. VAT
9
Hex socket screw M10x70
AP8150088
$3,65 Unit Price incl. VAT
10
Cup
AP8123721
$1,60 Unit Price incl. VAT
11
Rubber spacer
AP8144222
$6,73 Unit Price incl. VAT
12
Lower U-bolt
854815
$97,69 Unit Price incl. VAT
13
Fork upper plate
B045255
$251,30 Unit Price incl. VAT
14
Spacer
B046057
$4,36 Unit Price incl. VAT
15
Fairlead
2B000100
$5,67 Unit Price incl. VAT
16
Hex socket screw M8x35
AP8150236
$0,55 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
18
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
19
Ring nut
AP8123642
$10,64 Unit Price incl. VAT
20
Hex socket screw M5x16
AP8150454
$0,21 Unit Price incl. VAT
21
plate cover
2B000143
$30,74 Unit Price incl. VAT
22
T bush
AP8121811
$3,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
