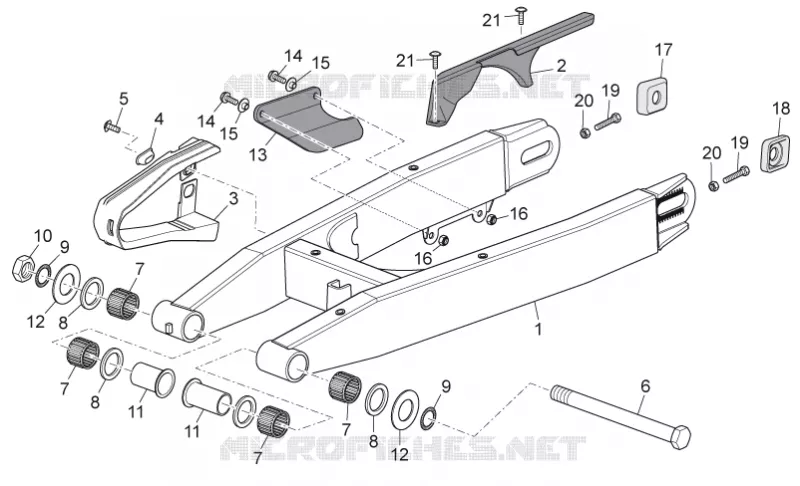

Swing arm FOR RX-SX FROM 2008

Swing arm

1

Swing arm

856712

Not Available

2

Chain guard

860187

Not Available

3

Chain guide plate

860108

Not Available

4

Cup for shoe

AP8234020

$2,74 Unit Price incl. VAT

5

Screw

AP8150246

$3,65 Unit Price incl. VAT

6

Rear swing arm pin

AP8105132

Not Available

7

Roller cage 22x28x16

AP8110067

$9,32 Unit Price incl. VAT

8

Gasket ring

AP8120240

$3,65 Unit Price incl. VAT

9

Washer D15x22x1

AP8152103

$0,22 Unit Price incl. VAT

10

Low nut M14x1,5*

AP8152007

$0,33 Unit Price incl. VAT

11

Rear sw.arm piv.bush

AP8121121

Not Available

12

Clearance washer

AP8101341

Not Available

13

R. chain guide plate, grey

AP8120700

Not Available

14

Screw w/ flange M6x20

AP8152279

$0,51 Unit Price incl. VAT

15

T bush *

AP8121035

$3,65 Unit Price incl. VAT

16

Low self-locking nut

AP8150430

$0,16 Unit Price incl. VAT

17

RH chain tensioner

856767

$3,33 Unit Price incl. VAT

18

LH chain tensioner

856732

$3,33 Unit Price incl. VAT

19

Chain tens.adjuster screw

AP8152305

$3,65 Unit Price incl. VAT

20

Low nut

AP8152262

Not Available

21

Screw w/ flange M5x12

AP8152302

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
