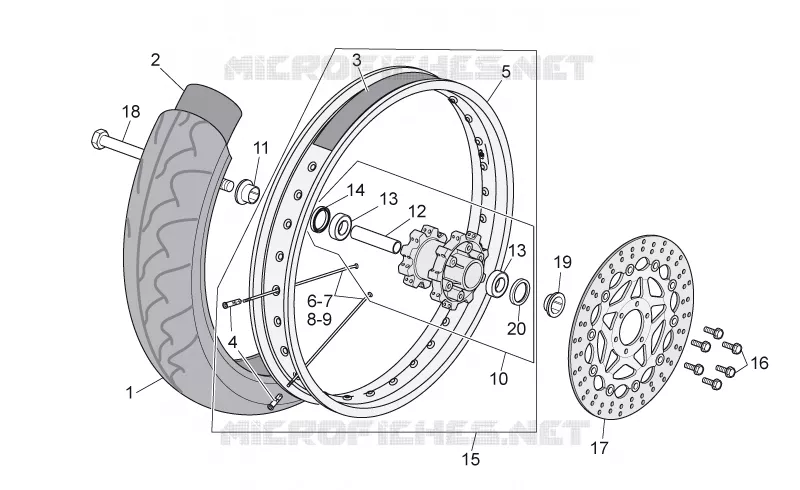

Front wheel FOR RX-SX FROM 2008

Front wheel

1

Front/rear tyre 110/70 R 17

860550

Not Available

1

Front/rear tyre 110/70 R17

AP8109310

Not Available

2

Front inner tube 21"

860552

Not Available

2

Front inner tube 17"

860544

Not Available

3

Rear wheel flap

AP8109004

Not Available

3

Front wheel flap 21"

AP8109001

$15,98 Unit Price incl. VAT

4

Nipples D3,5

AP8108672

$6,30 Unit Price incl. VAT

5

Front wheel

860810

Not Available

5

Front wheel

860015

Not Available

6

Spoke 251x3,5

858250

$1,01 Unit Price incl. VAT

7

Spoke 245x3,5

858251

Not Available

8

Spoke 196x3,5

858252

Not Available

9

Spoke 192x3,5

858253

Not Available

10

Front hub

AP8225411

Not Available

11

Front wheel spacer

AP8128168

Not Available

12

Bearing internal spacer

AP8125780

Not Available

13

Front wheel bear.

AP8125783

Not Available

14

Gasket ring

AP8125782

$18,12 Unit Price incl. VAT

15

Front wheel

860947

Not Available

15

Front wheel

860949

Not Available

16

Screw

AP8150139

$0,17 Unit Price incl. VAT

17

Front brake disc

856728

Not Available

18

Front hub pin

AP8225412

$31,81 Unit Price incl. VAT

19

Front wheel spacer

AP8125771

$4,07 Unit Price incl. VAT

20

Dust cover

AP8225414

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
