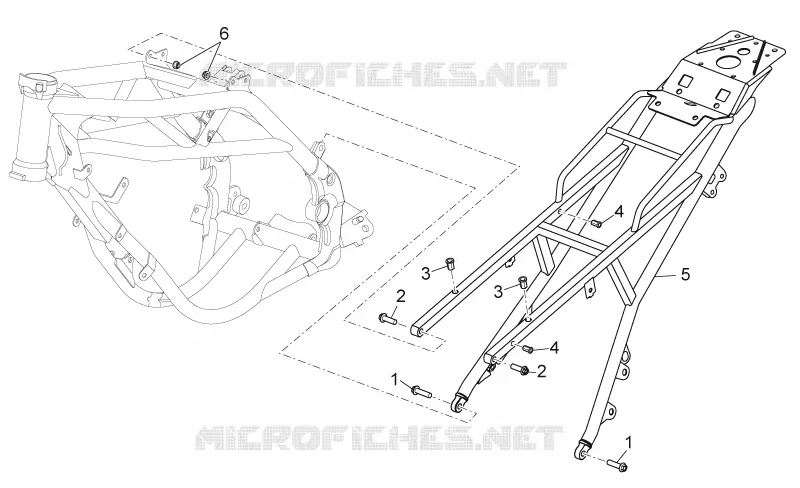

Frame II
1
1
2
2
3
3
4
4
5
6
1
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
2
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
3
Hex threaded insert
AP8102902
$3,65 Unit Price incl. VAT
4
Threaded rivet
AP8201755
$5,73 Unit Price incl. VAT
5
Saddle support
858493
Not Available
6
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
