1
Engine displacement
50
2
Model
RX
3
Year
2000
4
Trim
RX
5
Parts Catalog
Piston
6

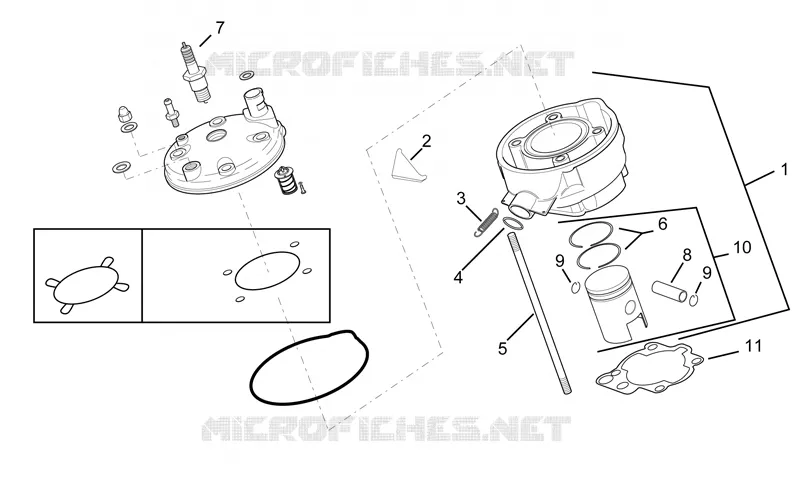

Parts Diagram
Parts Catalog
Drive shaft
by
Cylinder head
Piston
1
2
3
4
5
6
7
8
9
9
10
11
1
Cylinder with piston -NL-D40,3
AP8206404
Not Available
1
Cylinder with piston
AP8206760
Not Available
1
Cylinder with piston
AP8206950
Not Available
1
Cylinder with piston D40,3
AP8206375
Not Available
1
Cylinder with piston
AP8206979
Not Available
2
Spring fixing plate
AP8508882
Not Available
3
Exhaust pipe fixing spring
AP8507839
Not Available
4
O-ring D25x2,6
AP8206976
Not Available
4
O-ring D28,2x2,6
AP8502668
$4,36 Unit Price incl. VAT
5
Stud bolt M7x115
AP8508553
$11,66 Unit Price incl. VAT
6
Oversize piston rings D40,6
AP8206953
Not Available
6
Oversize piston rings D40,8
AP8206954
Not Available
6
Piston ring set D40,3x1,2
AP8206952
Not Available
7
Spark plug BR8ES
AP8206873
Not Available
7
Spark plug BR9ES
AP8206915
$6,75 Unit Price incl. VAT
8
Piston pin D12x34,5
AP8502846
$9,18 Unit Price incl. VAT
9
Stop ring D12
AP8206019
Not Available
10
Piston assy D40,6
AP8206956
Not Available
10
Piston assy D40,8
AP8206957
Not Available
10
Piston assy D40,3
AP8206955
Not Available
10
Piston assy D40,3
AP8206250
Not Available
11
Cylinder base gasket
AP8206292
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
