Parts Catalog

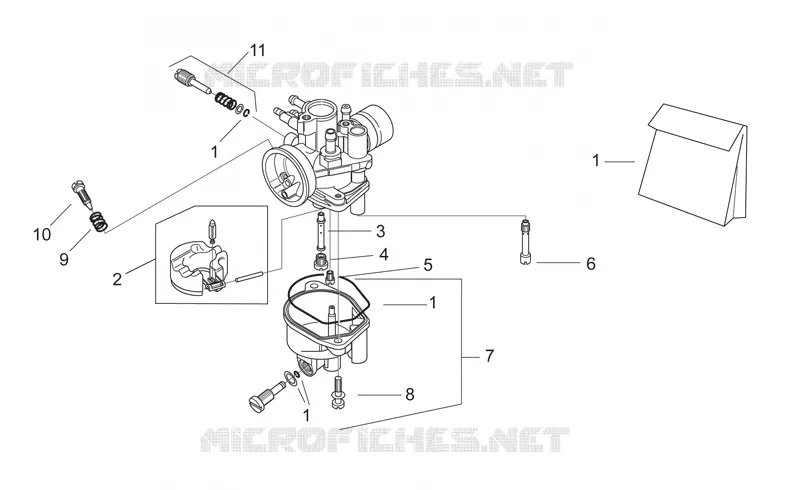

Carburettor IV
6
Parts Diagram
Parts Catalog
Carburettor III
by
Carburettor IV
1
1
1
1
2
3
4
5
6
7
8
9
10
11
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve GA212
AP8276031
Not Available
4
Main jet 102
AP8276034
$11,77 Unit Price incl. VAT
5
Idle jet 34
AP8222685
Not Available
6
Starter jet 45
AP8206982
$8,91 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Gas valve adj.screw kit
AP8106820
$8,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
