Front cylinder timing system for Caponord from 2016

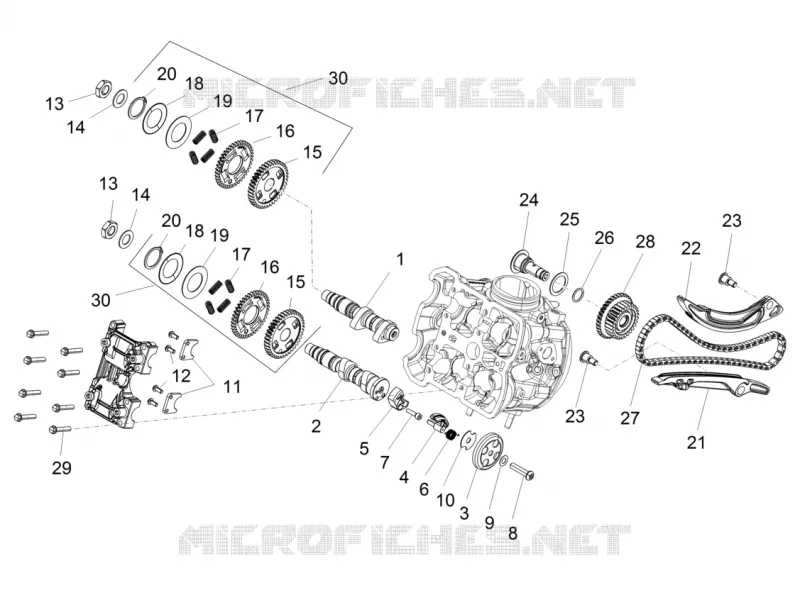

Front cylinder timing system

1

Intake camshaft

B0135335

Not Available

2

Exhaust camshaft

B0135315

Not Available

3

Decompression bell

876087

$1,54 Unit Price incl. VAT

4

Decompression counterweight

876113

$32,58 Unit Price incl. VAT

5

Decompressor counterweight

B015555

$106,52 Unit Price incl. VAT

6

Decompression spring

876171

$0,65 Unit Price incl. VAT

7

Hex socket screw

877885

$0,62 Unit Price incl. VAT

8

Torx convex big end screw

877884

$0,86 Unit Price incl. VAT

9

Shim washer

287073

$0,17 Unit Price incl. VAT

10

Special washer

879523

$1,22 Unit Price incl. VAT

11

Axial retaining element

877829

$4,85 Unit Price incl. VAT

12

Torx Screw M5x12

B014598

$0,25 Unit Price incl. VAT

13

Nut M15x1 DX

874751

$6,39 Unit Price incl. VAT

14

Thrust washer

874744

$0,38 Unit Price incl. VAT

15

Camshaft gear

875878

$25,98 Unit Price incl. VAT

16

Camshaft dual gear

B015604

$30,62 Unit Price incl. VAT

17

Spring

849721

$0,38 Unit Price incl. VAT

18

Belleville spring

849718

$0,44 Unit Price incl. VAT

19

Washer

849720

$0,53 Unit Price incl. VAT

20

Snap ring

006429

$3,65 Unit Price incl. VAT

21

Chain guide plate

871798

$5,68 Unit Price incl. VAT

22

Chain tensioner rod

880231

$5,68 Unit Price incl. VAT

23

Spacer screw M8

878868

$2,64 Unit Price incl. VAT

24

Special screw

1A006352

$29,76 Unit Price incl. VAT

25

Safety washer

849817

$1,15 Unit Price incl. VAT

26

Gasket ring

873233

$0,15 Unit Price incl. VAT

27

Chain 114 mesh

875411

$68,48 Unit Price incl. VAT

28

Timing gear

8756994

$60,67 Unit Price incl. VAT

29

screw M6x35

414838

$0,67 Unit Price incl. VAT

30

Complete front camshaft axle gear

875879

Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
