1
Engine displacement
1200
2
Model
CAPONORD
3
Year
2016
4
Trim
Caponord
5
Parts Catalog

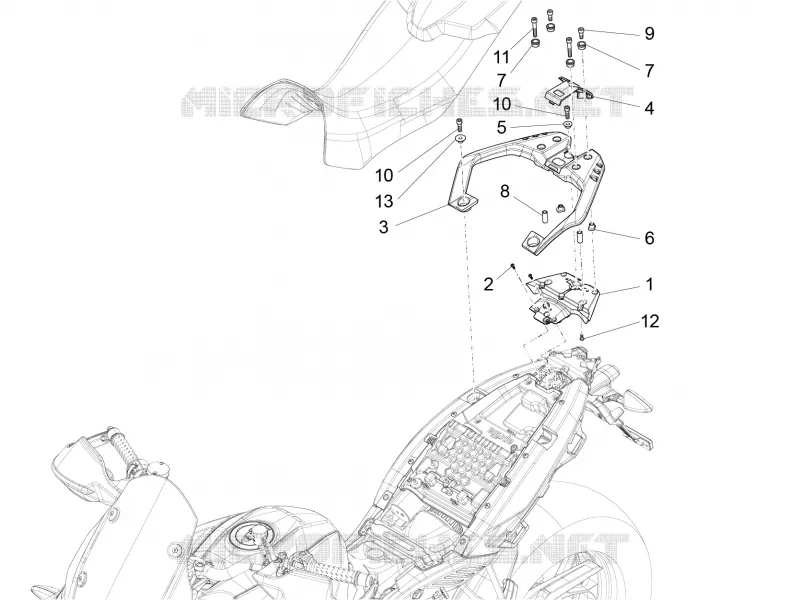

Luggage rack
6
Parts Diagram
Parts Catalog
Locks
by
Front lights
Luggage rack
13
12
11
10
10
9
8
7
7
6
5
4
3
2
1
1
Luggage rack base
B044852
$28,44 Unit Price incl. VAT
2
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
3
Luggage rack
B044853
$201,65 Unit Price incl. VAT
4
Luggage rack cover
B044854
$95,29 Unit Price incl. VAT
5
Bush
2B000102
$4,36 Unit Price incl. VAT
6
Bush
B045761
$6,60 Unit Price incl. VAT
7
Bush
B045762
$5,20 Unit Price incl. VAT
8
Bush
B045763
$5,20 Unit Price incl. VAT
9
Hex socket screw M8x20
GU98692420
$3,65 Unit Price incl. VAT
10
Hex socket screw M8x25
AP8150520
$5,38 Unit Price incl. VAT
11
screw M8x45
GU98690445
$1,51 Unit Price incl. VAT
12
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
13
Bush
AP8121510
$9,41 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
