Handlebar - Controls for Caponord from 2016

Handlebar - Controls

1

Handlebar

B044478

$321,39 Unit Price incl. VAT

2

Spacer

B046057

$4,36 Unit Price incl. VAT

3

Hex socket screw M10x70

AP8150088

$3,65 Unit Price incl. VAT

4

Rubber spacer

AP8144222

$6,73 Unit Price incl. VAT

5

Cup

AP8123511

Not Available

6

Lower U-bolt

854815

$97,69 Unit Price incl. VAT

7

Upper U-bolt

851628

$52,07 Unit Price incl. VAT

8

Screw M8x25 INOX

AP8152486

$4,62 Unit Price incl. VAT

9

Opening throttle cable

B045614

$55,33 Unit Price incl. VAT

10

Closure throttle cable

B045615

$55,33 Unit Price incl. VAT

11

LH hand grip

AP8118579

$10,80 Unit Price incl. VAT

12

Throttle with hand grip

GU01603480

$39,15 Unit Price incl. VAT

13

Rh side mirror

896663

$21,05 Unit Price incl. VAT

14

Lh side mirror

858539

$21,05 Unit Price incl. VAT

15

RH lights selector

B044217

$134,53 Unit Price incl. VAT

15

RH lights selector cruise control

B044218

$219,71 Unit Price incl. VAT

16

LH lights selector

896107

$89,08 Unit Price incl. VAT

17

Hose clamp

860744

$3,38 Unit Price incl. VAT

18

Black hose 178x4

AP8120416

$5,38 Unit Price incl. VAT

19

RH handguard

B044835

$33,81 Unit Price incl. VAT

20

LH handguard

B044836

$33,81 Unit Price incl. VAT

21

Anti vib.weight trailing

AP8121520

$6,73 Unit Price incl. VAT

22

Anti.v weight, black

859949

$23,17 Unit Price incl. VAT

23

Spacer

AP8120253

$3,65 Unit Price incl. VAT

24

Rubber spacer

AP8144081

$4,62 Unit Price incl. VAT

25

Bush

AP8121032

$0,59 Unit Price incl. VAT

26

Hex socket screw M6x50

AP8150324

$3,65 Unit Price incl. VAT

27

Screw w/ flange M6x16

AP8152246

$0,27 Unit Price incl. VAT

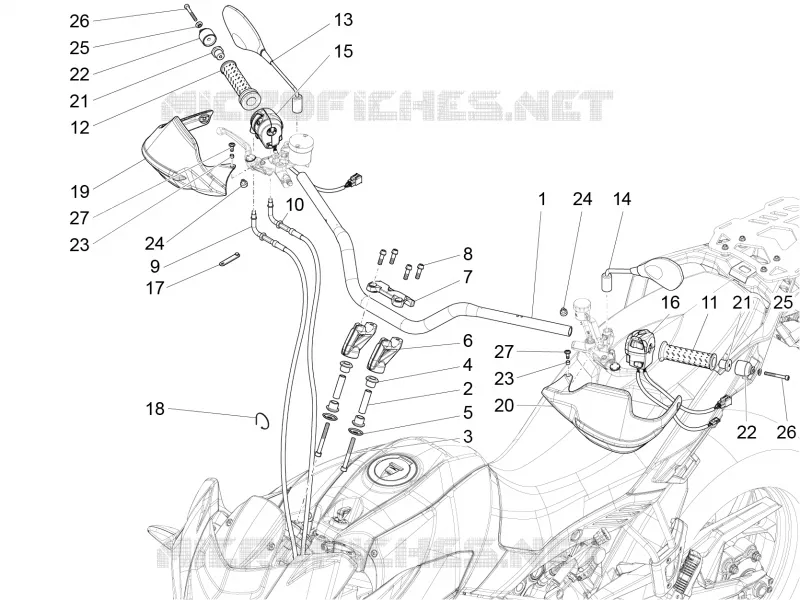

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
