Front brake system II for APRILIA RXV-SXV from 2008

Front brake system II

1

LEVIER

851366

$489,22 Unit Price incl. VAT

2

screw

AP9100921

Not Available

3

Kit révision levier

851367

$164,46 Unit Price incl. VAT

4

Pressing kit

AP9100919

$59,95 Unit Price incl. VAT

5

Stop switch

AP9100918

$94,23 Unit Price incl. VAT

6

Réservoir huile cpl

AP9100917

$75,62 Unit Price incl. VAT

7

screw

AP9100916

Not Available

8

Tuyau huile frein

AP9100915

$19,68 Unit Price incl. VAT

9

Raccord

AP9100914

$27,67 Unit Price incl. VAT

10

PLAQUETTE

851368

$35,51 Unit Price incl. VAT

11

Pump revision kit

AP9100912

Not Available

12

Kit purge

AP9100911

$21,52 Unit Price incl. VAT

13

Cavalier

AP9100910

$34,73 Unit Price incl. VAT

14

Vis bride

AP8152280

$0,25 Unit Price incl. VAT

15

Front brake caliper

AP9100713

Not Available

16

Pads pair

AP9100906

Not Available

17

Pivot avec goupille

AP9100907

$35,51 Unit Price incl. VAT

18

Brake caliper rev. kit

AP9100908

Not Available

19

Brake pistons, pair

AP9100909

Not Available

20

Kit révision purge

AP9100905

$38,43 Unit Price incl. VAT

21

Vis tuyau huile

AP9100763

$12,36 Unit Price incl. VAT

22

Gasket

AP8121915

Not Available

23

Vis bride

AP9100749

$3,65 Unit Price incl. VAT

24

Front brake hose

AP9100712

Not Available

25

Front master cilinder FTE

851348

$593,88 Unit Price incl. VAT

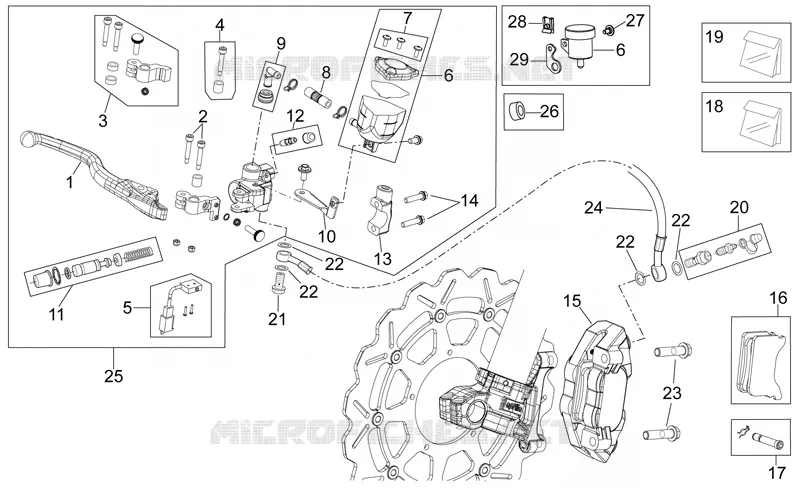

Find the detailed Front brake system II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
