Central body for APRILIA RXV-SXV from 2008

Central body

1

RH side panel, black

AP8184590

Not Available

1

RH side panel, black

AP8184507

Not Available

1

RH side panel, red

AP8184505

Not Available

2

LH side panel, red

AP8184504

Not Available

2

LH side panel, black

AP8184591

Not Available

2

LH side panel, black

AP8184520

Not Available

3

Douille

AP9100053

$1,70 Unit Price incl. VAT

4

Screw w/ flange M6x16 inox

AP9100645

$2,95 Unit Price incl. VAT

5

Protection amortisseur

AP9100504

$8,91 Unit Price incl. VAT

6

Clip

AP8102375

$0,69 Unit Price incl. VAT

7

Vis bride

AP8152274

$0,08 Unit Price incl. VAT

8

Rondelle thermofuge

AP8144064

$2,95 Unit Price incl. VAT

9

"Douille en ""T"""

AP8121736

$3,65 Unit Price incl. VAT

10

Sump guard

AP9100347

Not Available

11

Douille

AP9100778

$3,65 Unit Price incl. VAT

12

Vis bride

AP9100661

$5,20 Unit Price incl. VAT

13

Ecrou autobloqu.

AP9100434

$29,76 Unit Price incl. VAT

14

Vis bride

AP8152279

$0,51 Unit Price incl. VAT

15

Silentbloc

AP8101372

$4,62 Unit Price incl. VAT

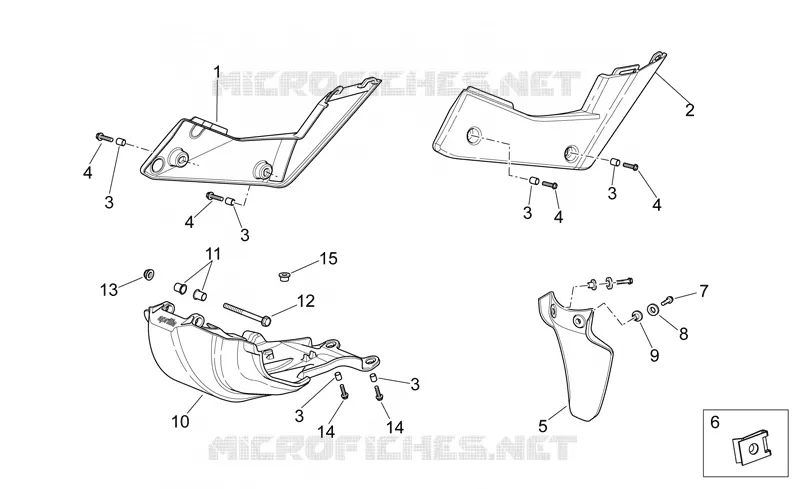

Find the detailed Central body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
