1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog
Clutch I
6
Parts Diagram
Parts Catalog
Cylinder with piston
by
Rear body I
Clutch I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Débrayage
AP9150196
$45,50 Unit Price incl. VAT
2
Joint spi
AP9150384
$3,65 Unit Price incl. VAT
3
Roller cage D12x16x10
AP9150374
Not Available
4
Roller cage D8x12x10
AP9150373
Not Available
5
Tige
AP9150040
$62,26 Unit Price incl. VAT
6
Entretoise
AP9150284
$10,95 Unit Price incl. VAT
7
Roller cage D28x33x13
AP9150367
Not Available
8
Rondelle
AP9150234
$29,76 Unit Price incl. VAT
9
Clutch housing, complete
851436
$248,40 Unit Price incl. VAT
10
Tamb. embr.alu
AP9150190
$100,52 Unit Price incl. VAT
11
Safety washer
AP9100386
Not Available
12
Écrou
AP9150235
$22,46 Unit Price incl. VAT
13
Disque embr. garni
AP8176214
$137,70 Unit Price incl. VAT
14
Disque embr. acier
AP8176215
$33,75 Unit Price incl. VAT
15
Encliquetage embrayage
AP9150195
$14,30 Unit Price incl. VAT
16
Cage à rouleaux
AP9150358
$5,40 Unit Price incl. VAT
17
Butée
AP9150359
$3,65 Unit Price incl. VAT
18
Disque de poussée embrayage
AP9150191
$56,87 Unit Price incl. VAT
19
Ressort embrayage
AP9150194
$5,38 Unit Price incl. VAT
20
Rondelle
AP9150232
$3,65 Unit Price incl. VAT
21
Vis bride
AP8152279
$0,51 Unit Price incl. VAT

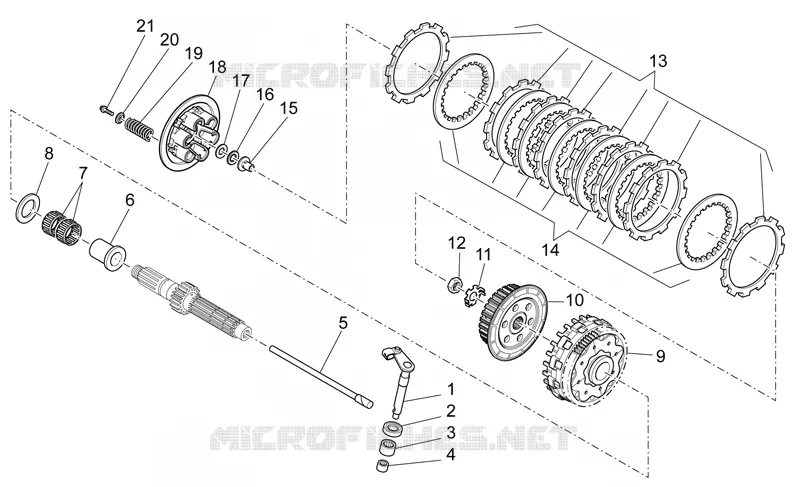

Find the detailed Clutch I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
