Engine for APRILIA RXV-SXV Vdb-Merriman from 2008

Engine

1

Engine

CM2362095

Not Available

1

Engine

CM2363065

Not Available

1

Engine

CM2362065

Not Available

2

Gear lever

855371

Not Available

2

Levier boîte de vitesses

AP9100411

$35,51 Unit Price incl. VAT

3

Vis bride

AP8152280

$0,25 Unit Price incl. VAT

3

Screw w/ flange M6x25 titan

853598

Not Available

4

screw M10x1,25 L=202 titan

853588

Not Available

4

Vis

AP9100593

$15,31 Unit Price incl. VAT

5

screw M10x1,25 L=102

AP9100443

Not Available

5

screw M10x1,25 L=102 titan

853587

Not Available

6

Ecrou autobloqu.

AP9100643

$3,65 Unit Price incl. VAT

6

Self-locking nut M10x1,25

853589

Not Available

7

Rondelle

AP9100687

$3,65 Unit Price incl. VAT

8

Rondelle

AP9100684

$3,65 Unit Price incl. VAT

8

Rondelle

AP9100686

$3,65 Unit Price incl. VAT

8

Rondelle

AP9100685

$3,65 Unit Price incl. VAT

8

Rondelle

AP9100683

$3,65 Unit Price incl. VAT

9

Carter pignon

AP9100374

$17,07 Unit Price incl. VAT

10

Guide-chaîne

AP9100367

$5,38 Unit Price incl. VAT

11

Douille

AP9100383

$3,65 Unit Price incl. VAT

12

Douille

AP9100550

$3,65 Unit Price incl. VAT

12

Douille

AP9100381

$10,95 Unit Price incl. VAT

13

Vis bride

AP8152281

$1,70 Unit Price incl. VAT

13

Screw w/ flange M6x50 titan

853597

Not Available

14

Screw w/ flange M6x60 titan

853596

Not Available

14

Vis bride

AP8152283

$0,32 Unit Price incl. VAT

15

Gasket set

AP9150491

$168,75 Unit Price incl. VAT

15

Gasket set

AP9150490

Not Available

16

Joint spy-série

AP9150492

$237,16 Unit Price incl. VAT

17

OR set

AP9150493

Not Available

18

Electronic gearshift switch

855370

Not Available

19

Electronic gearshift ecu

855461

Not Available

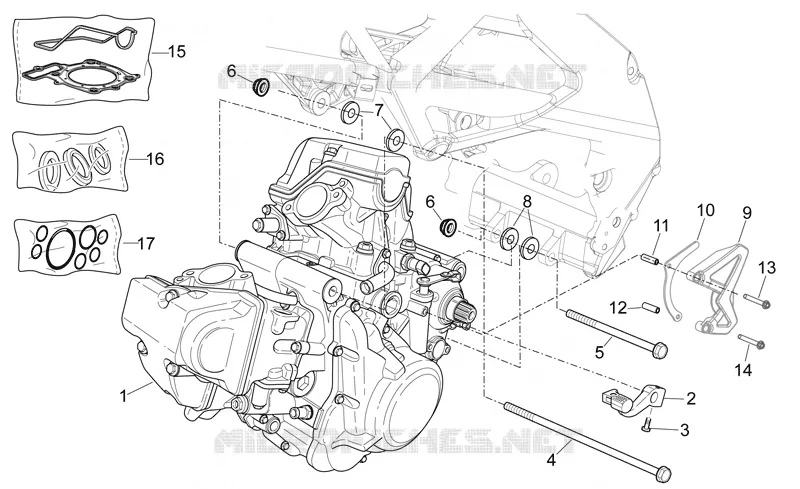

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
