Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog
Steering I
6
Parts Diagram
Parts Catalog
Electrical system I
by
Central stand
Steering I
1
2
3
4
5
6
7
7
8
8
9
10
11
11
11
11
12
12
13
13
14
14
14
14
15
16
17
1
Upper plate
855312
Not Available
2
Stem base
855313
Not Available
3
Ecrou axe
AP9100026
$9,41 Unit Price incl. VAT
4
Rondelle
AP9100028
$3,65 Unit Price incl. VAT
5
Bague
AP9100021
$17,07 Unit Price incl. VAT
6
Bague d'étanchéité sup.
AP9100204
$8,01 Unit Price incl. VAT
7
Fifth wheel
851029
Not Available
8
Bearing
851030
Not Available
9
Bague d'étanchéité inf.
AP9100205
$5,20 Unit Price incl. VAT
10
Lower U-bolt
AP9100293
Not Available
11
Silent block
AP9100412
$5,38 Unit Price incl. VAT
12
Rondelle
AP9100776
$3,65 Unit Price incl. VAT
13
Ecrou autofr. Bas
AP9100439
$3,65 Unit Price incl. VAT
14
Vis bride
AP8152290
$3,65 Unit Price incl. VAT
15
Plate
855177
Not Available
16
Vis FHC
AP8150064
$4,62 Unit Price incl. VAT
17
Bouchon poignée
AP8144516
$5,38 Unit Price incl. VAT

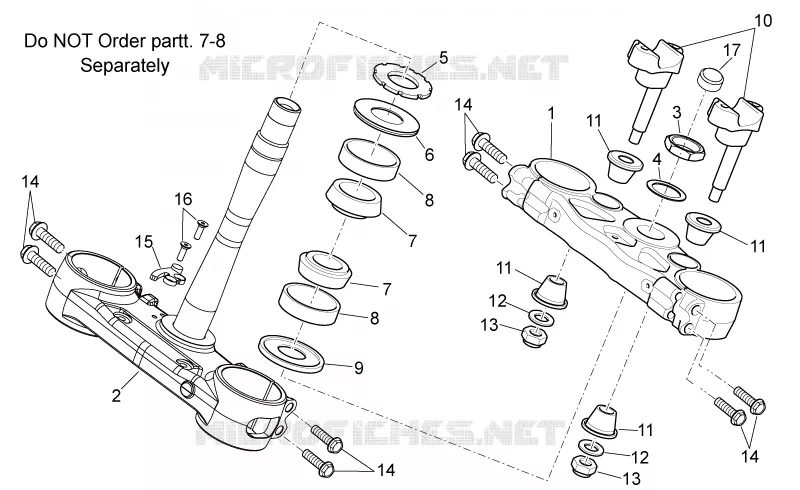

Find the detailed Steering I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
